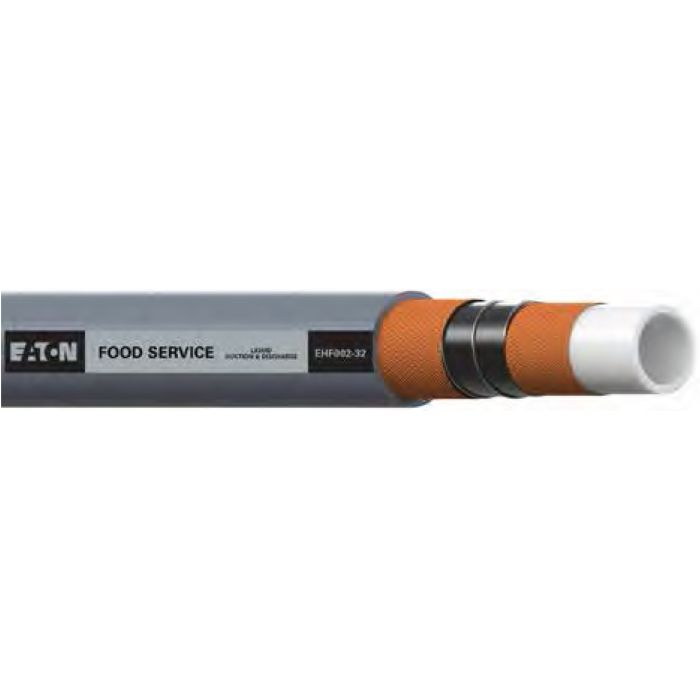

Liquid Food Suction & Discharge Hose
Description & Features
| Application | For suction and discharge of milk, vegetable oil and beverages. Please review application requirements and limitations found in |
| Construction | Vegetable oil-resistant NBR tube, FDA approved material; High-tensile synthetic textile with a single steel helical wire reinforcement; Oil, abrasion, ozone, and weather resistant synthetic rubber cover. |
| Fitting Attachment | Band-It® Jr.Preformed Clamps. Band and Buckle. |
| Fittings | Cam and Groove. Combination Nipples |
| Fittings & Fitting Attachment Suggestions | • Cam and groove • Combination nipple |
| Temperature Range | -40°F to +176°F |
Products
| Model Number | Color | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Vacuum Service | Reel Qty (ft) | Price | Action |
|---|---|---|---|---|---|---|---|---|---|
EHF002-48GY-100 Liquid Food S & D Hose |
Gray |
3 |
3.66 |
150 |
|
28 |
100 |
|
|
EHF002-24GY-100 Liquid Food S & D Hose |
Gray |
1.5 |
2.06 |
150 |
|
28 |
100 |
|
|
EHF002-32GY-100 Liquid Food S & D Hose |
Gray |
2 |
2.6 |
150 |
|
28 |
100 |
|
|
EHF002-64GY-100 Liquid Food S & D Hose |
Gray |
4 |
4.67 |
150 |
|
28 |
100 |
|
