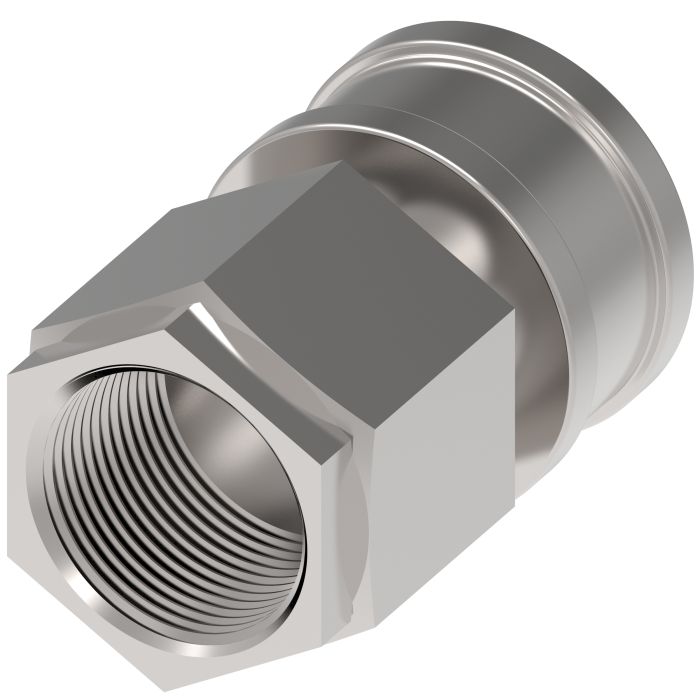

Constructed from 303 stainless steel with Buna-N seals, this female half quick disconnect coupling is designed for demanding hydraulic and fluid transfer applications across agriculture, construction, oil and gas, aerospace, and general industry. The ball lock internal connection mechanism allows fast, tool-free coupling and disconnection, reducing downtime in the field.
The Danfoss / Eaton Hansen HK Series coupling features a push-to-connect female end and an NPTF female port, with a rated flow capacity of 99 gallons per minute and a minimum working temperature of -40°F. Certified to ISO 7241-1 Series B, it exceeds ISO 16028 operating pressure requirements. The 2-way valve configuration supports a wide range of hydraulic circuit types, and the stainless steel construction makes it a practical choice for chemical, food and beverage, military, and medical environments where corrosion resistance is a priority.
SKU: LL12H41
Supplier Part Number (MPN): LL12H41
|
Alternate Part Numbers
MINO-00015X14024
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
99 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
303 Stainless Steel
|
Product Width
3.23
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL12H41
|
Valve Type
2 way
|
Product Weight
4.92 lbs
|
