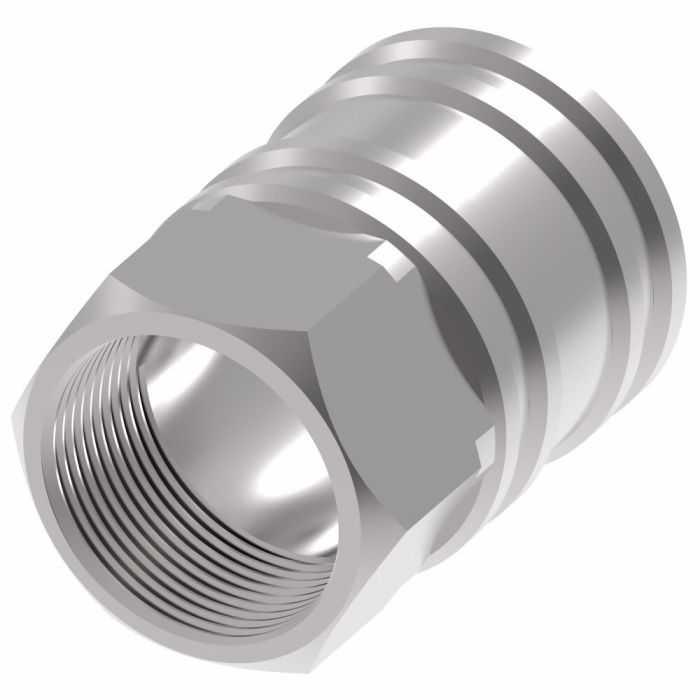

Constructed from stainless steel with a Buna-N seal, this 1-1/2" female half quick disconnect coupling is built for reliable fluid transfer across a wide range of industrial applications, including chemical processing, food and beverage, injection molding, marine, medical, and pressure washing environments.
The Danfoss / Eaton Hansen ST Series coupling features a push-to-connect end with an NPTF port and a ball lock internal connection mechanism. The straight-through valve design supports high flow rates, and the coupling exceeds ISO 16028 operating pressure standards. No special tools are required for connection or disconnection, making it practical for frequent service cycles. Rated for use down to -40°F minimum working temperature.
SKU: LL12S46
Supplier Part Number (MPN): LL12S46
|
Alternate Part Numbers
MINO-00015X14037
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
297 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1 1/2
|
Product Material
Stainless Steel
|
Product Width
3.13
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL12S46
|
Valve Type
Straight Thru
|
Product Weight
2.73 lbs
|
