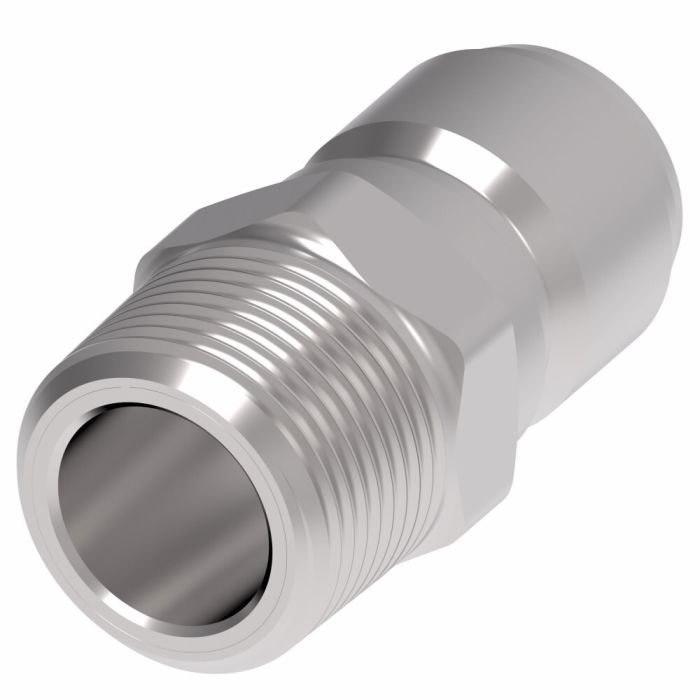

Designed for efficient fluid transfer across diverse applications, the Danfoss / Eaton Hansen ST Series Quick Disconnect Couplings Plug ensures reliability and ease of use. Constructed from durable stainless steel, this coupling plug supports a wide range of environments, including chemical, food and beverage, marine, medical, and steam cleaning sectors. Its push-to-connect and NPTF ends, combined with a ball lock internal connection, offer secure and swift assembly without requiring special tools.
With a flow rate of up to 297 gallons per minute, this coupling exceeds ISO 16028 operating pressures, making it a robust choice for demanding tasks. The Buna-N seal material enhances its suitability for various fluid types, providing a dependable sealing performance. Each unit is a male half, ensuring compatibility with corresponding female couplings.
SKU: LL12T46
Supplier Part Number (MPN): LL12T46
|
Alternate Part Numbers
MINO-00402X03513
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
297 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1 1/2
|
Product Material
Stainless Steel
|
Product Width
2.60
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL12T46
|
Valve Type
Straight Thru
|
Product Weight
1.32 lbs
|
