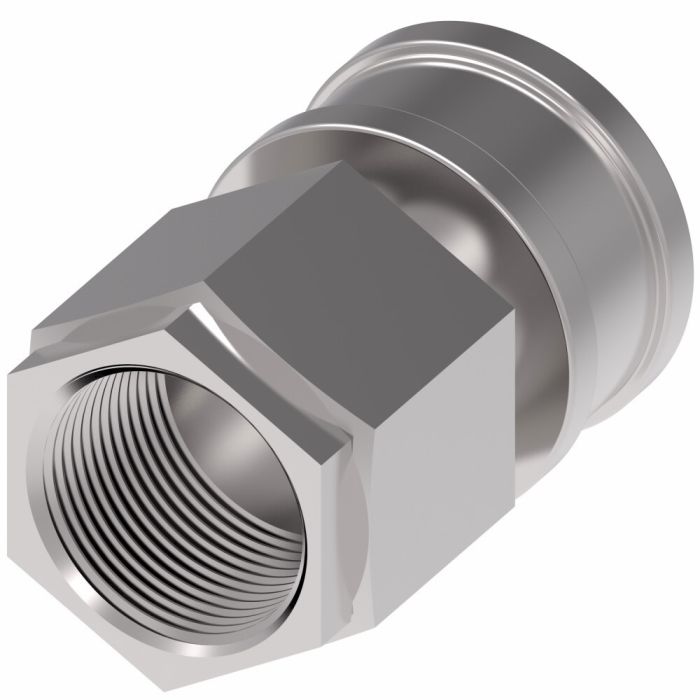

This DANFOSS / EATON/HANSEN CPLNG socket, part of the Hansen HK Series, features a push-to-connect design for quick and easy connections without the need for special tools. Constructed from 303 stainless steel with Buna-N seals, this female half coupling is suitable for a wide range of applications, including agriculture, construction, fluid transfer, and oil and gas.
The coupling adheres to ISO 7241-1 Series B standards and incorporates a 2-way valve type with a ball lock internal connection. It is designed for a port size of 1/8" BSPP and offers a flow rate of 0.8 gallons per minute. This coupling is compatible with a broad spectrum of fluids, as detailed in the provided fluid compatibility document.
SKU: LL1H11BS
Supplier Part Number (MPN): LL1H11BS
|
Alternate Part Numbers
MINO-00015X14049
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.13
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.8 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/8
|
Product Material
303 Stainless Steel
|
Product Width
0.98
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL1H11BS
|
Valve Type
2 way
|
Product Weight
0.18 lbs
|
