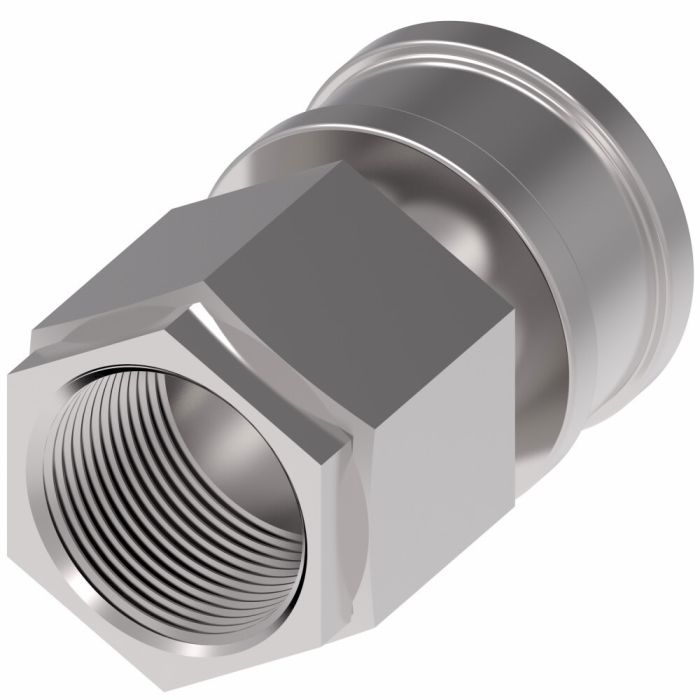

This Danfoss / Eaton HANSEN QD socket is a female half quick disconnect coupling made from 303 stainless steel, designed for a broad range of applications including agriculture, construction, fluid transfer, chemical processing, oil and gas, and aerospace. Suitable for hydraulic tools and general industry, this coupling meets ISO 7241-1 Series B standards.
Featuring a ball lock internal connection type, this 2-way valve type coupling ensures a secure and reliable connection. The female SAE end has a size of 0.4375 inches. With a Buna-N seal material, it is designed to operate in temperatures as low as -40 degrees. It offers quick connect and disconnect functionality without the need for special tools and exceeds ISO 16028 operating pressures with a flow rate of 0.8 gallons per minute.
SKU: LL1H4
Supplier Part Number (MPN): LL1H4
|
Alternate Part Numbers
MINO-00015X14053
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.44
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.8 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
303 Stainless Steel
|
Product Width
0.98
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL1H4
|
Valve Type
2 way
|
Product Weight
0.21 lbs
|
