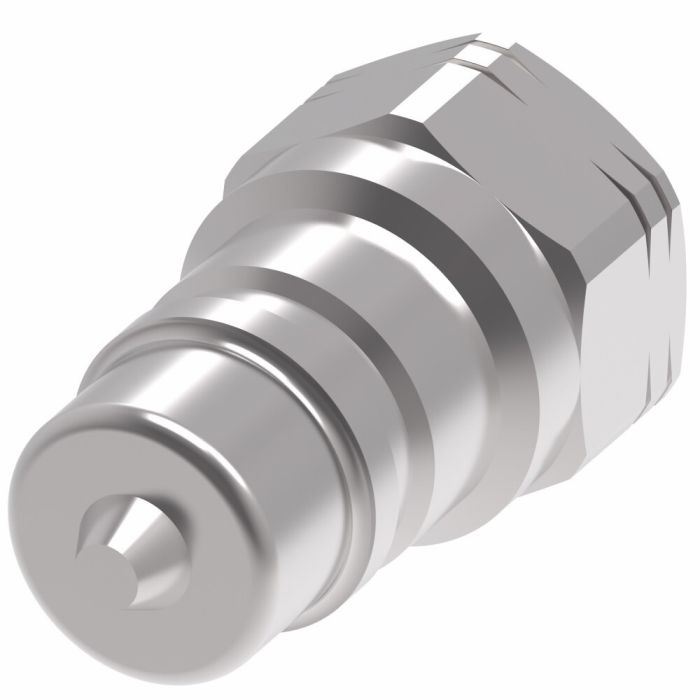

Constructed from 303 stainless steel with a Buna-N seal, this male half quick disconnect coupling is designed for reliable fluid transfer across a wide range of industrial and mobile applications. The ball lock internal connection type and push-to-connect end allow for fast, tool-free coupling and disconnection without interrupting system pressure.
The Danfoss / Eaton Hansen HK Series coupling carries ISO 7241-1 Series B certification and is rated for a minimum working temperature of -40°F, making it suitable for demanding environments in agriculture, construction, oil and gas, aerospace, and transportation. A 1/8 in. NPTF female port on the secondary end provides straightforward integration with standard hydraulic circuits. Flow rate is rated at 0.8 GPM.
Applicable across both stationary and mobile hydraulic equipment, this fitting is well suited wherever fast-change connections are required without the need for threaded assembly tools.
SKU: LL1K11
Supplier Part Number (MPN): LL1K11
|
Alternate Part Numbers
MINO-00015X14055
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.13
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.8 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
303 Stainless Steel
|
Product Width
0.65
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL1K11
|
Valve Type
2 way
|
Product Weight
0.04 lbs
|
