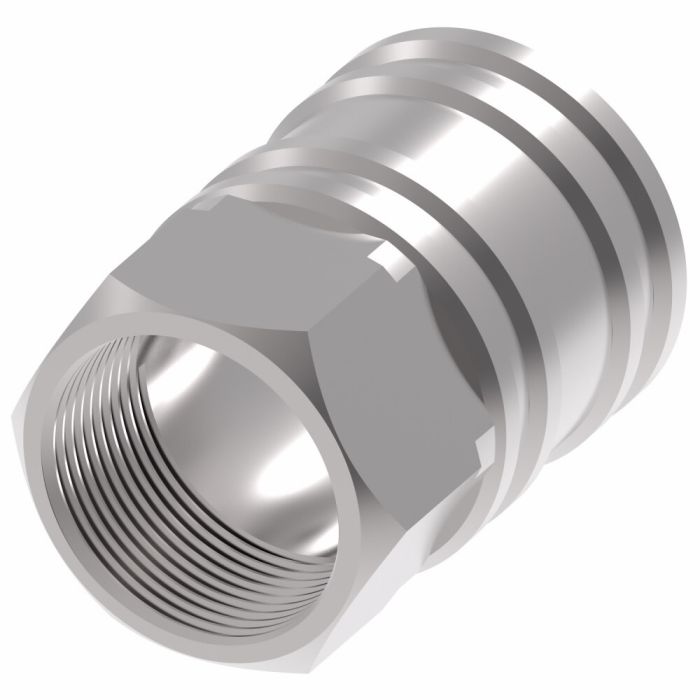

This female quick disconnect socket is part of the Danfoss / Eaton Stainless ST Series. Constructed from stainless steel with Buna-N seals, it is suitable for fluid transfer in chemical, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning applications.
The socket features a push-to-connect end type, a 1/8 inch NPTF end type 2, and a ball lock internal connection. It allows for quick connection and disconnection without the need for special tools and exceeds ISO 16028 operating pressures. It has a flow rate of 2.7 gallons per minute and a minimum working temperature of -40 degrees.
SKU: LL1S11
Supplier Part Number (MPN): LL1S11
|
Alternate Part Numbers
MINO-00015X14063
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.13
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
2.7 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/8
|
Product Material
Stainless Steel
|
Product Width
0.72
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL1S11
|
Valve Type
Straight Thru
|
Product Weight
0.06 lbs
|
