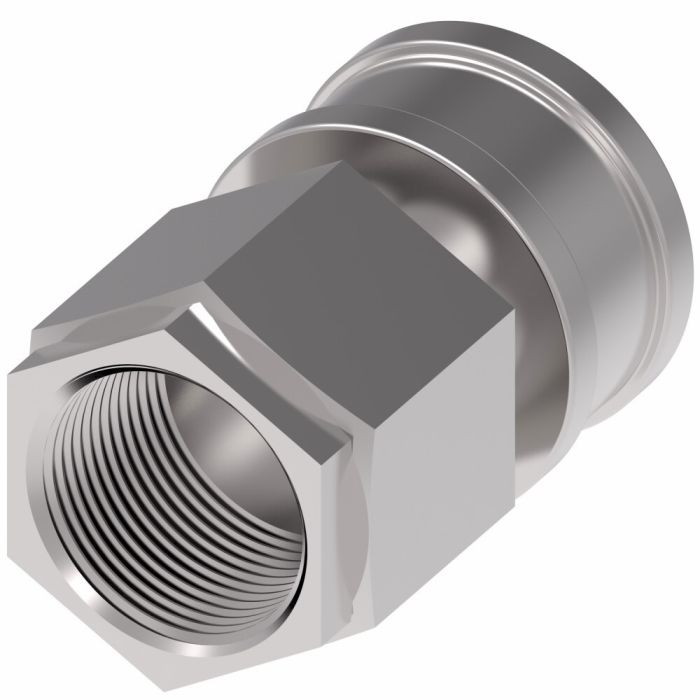

Designed for high-flow hydraulic applications across agriculture, construction, oil and gas, aerospace, and general industry, the Danfoss / Eaton Hansen QD is a female half quick disconnect coupling built for reliable fluid transfer without special tools. Constructed from 303 stainless steel with Buna-N seals, it is suited for demanding service environments with a minimum working temperature of -40°F.
The coupling features a ball lock internal connection, a push-to-connect end with an NPTF threaded port, and a 2-way valve configuration. Certified to ISO 7241-1 Series B, it exceeds ISO 16028 operating pressures and supports flow rates up to 200 gallons per minute. The female half design connects and disconnects quickly without a safety locking mechanism, keeping change-over times short in field and production environments alike.
SKU: LL20H61
Supplier Part Number (MPN): LL20H61
|
Alternate Part Numbers
MINO-00015X14075
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
3
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
200 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
303 Stainless Steel
|
Product Width
4.11
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL20H61
|
Valve Type
2 way
|
Product Weight
12.48 lbs
|
