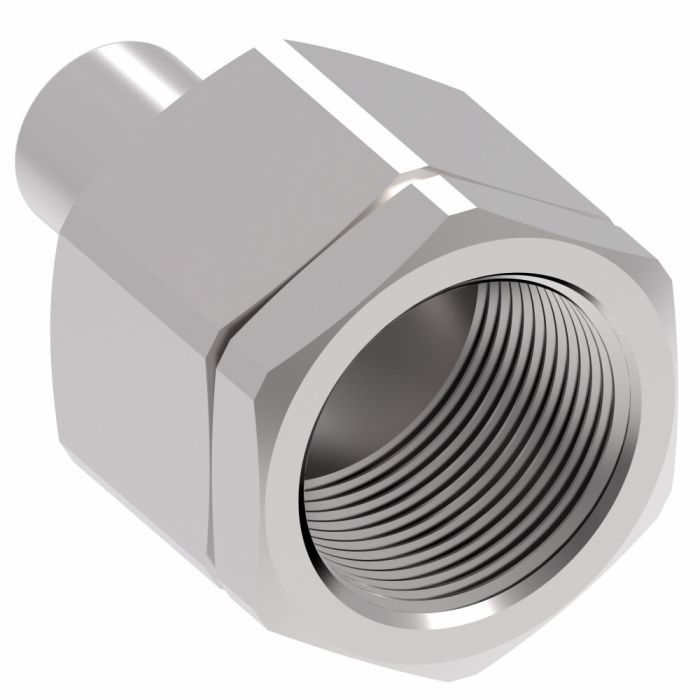

Constructed from 303 stainless steel with Buna-N seals, this male half quick disconnect coupling is built for demanding hydraulic and fluid transfer applications across agriculture, construction, oil and gas, aerospace, and other industrial sectors. It features a push-to-connect end on the male side and a 3/8 NPTF threaded female port, with a ball lock internal connection and a two-way valve configuration.
The Danfoss / Eaton Hansen QD connects and disconnects without special tools and is rated to exceed ISO 16028 operating pressures, with a maximum flow rate of 200 gallons per minute. Certified to ISO 7241-1 Series B, it operates reliably down to -40°F, making it well-suited for cold-environment and mobile equipment applications. The stainless steel body supports compatibility across a broad range of fluid media, including chemical and food and beverage service.
SKU: LL20K61
Supplier Part Number (MPN): LL20K61
|
Alternate Part Numbers
MINO-00015X14079
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
3
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
200 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
303 Stainless Steel
|
Product Width
4.62
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL20K61
|
Valve Type
2 way
|
Product Weight
9.24 lbs
|
