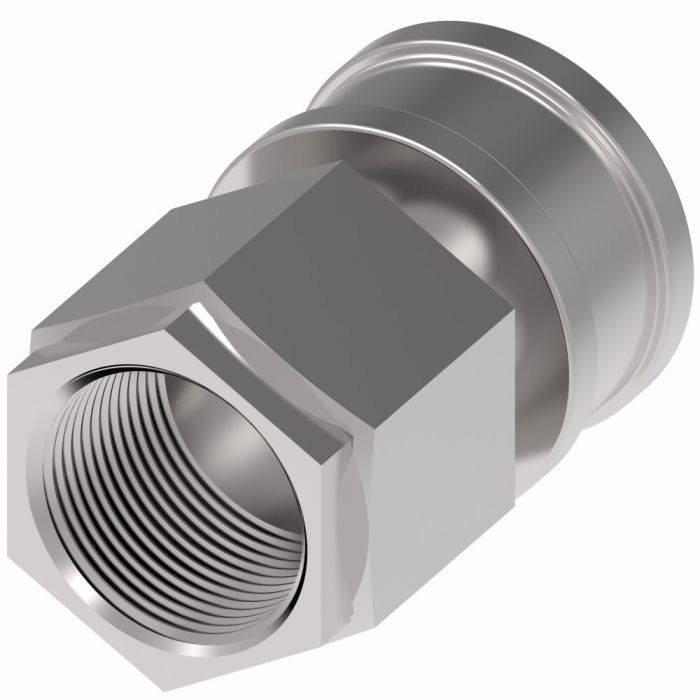

This DANFOSS / EATON COUPLING, part of the Hansen HK Series, is a quick disconnect coupling socket designed for a wide range of applications, including agriculture, hydraulic tools, general industry, construction, fluid transfer, and transportation. It's also suitable for military, law enforcement/rescue, chemical, oil and gas, consumer products, HVAC, food and beverage, trucks, aerospace, and medical applications.
Constructed from 303 stainless steel with Buna-N seals, this female half coupling features a 1/4 inch port size and a 3 gallons per minute flow rate. The push-to-connect design eliminates the need for special tools, offering quick and easy connections and disconnections. It also includes a sleeve lock for added safety. This coupling exceeds ISO 16028 operating pressures and meets ISO 7241-1 Series B certifications.
SKU: LL2H16SL
Supplier Part Number (MPN): LL2H16SL
|
Alternate Part Numbers
MINO-00015X14090
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
3 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/4
|
Product Material
303 Stainless Steel
|
Product Width
1.14
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL2H16SL
|
Valve Type
2 way
|
Product Weight
0.28 lbs
|
