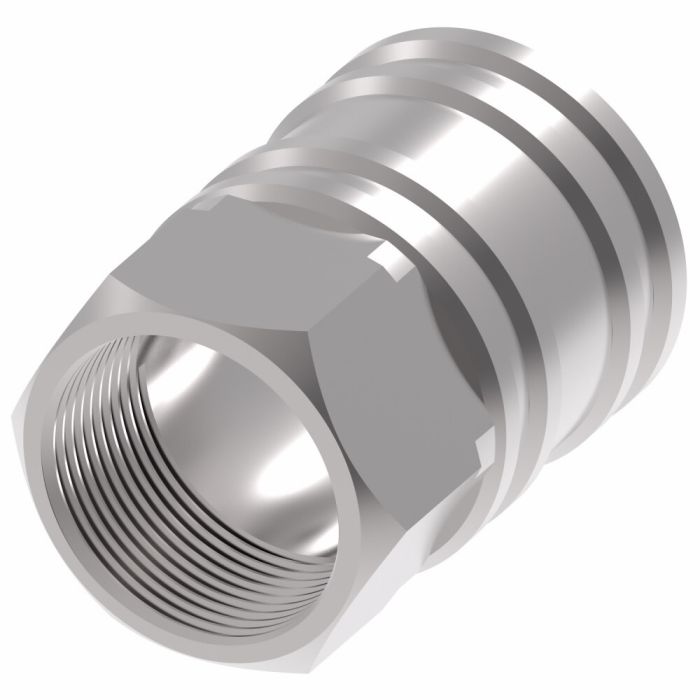

Designed for versatile applications, the Danfoss / Eaton Hansen CPLNG Quick Disconnect Couplings Socket offers efficient fluid transfer in demanding environments. It supports fluid transfer in industries such as chemical processing, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning. This coupling features a push-to-connect design with a straight-thru valve type, ensuring seamless connectivity without the need for special tools.
Constructed from durable stainless steel and equipped with a Buna-N seal, this coupling is built to withstand harsh conditions, with a minimum working temperature of -40°F. It handles flow rates up to 5.6 gallons per minute, exceeding ISO 16028 operating pressures. The internal ball lock mechanism ensures a secure connection, while the NPTF end type and 1/4-inch port size offer compatibility with a variety of systems.
SKU: LL2S16
Supplier Part Number (MPN): LL2S16
|
Alternate Part Numbers
MINO-00015X14114
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.25
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
5.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/4
|
Product Material
Stainless Steel
|
Product Width
0.97
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL2S16
|
Valve Type
Straight Thru
|
Product Weight
0.16 lbs
|
