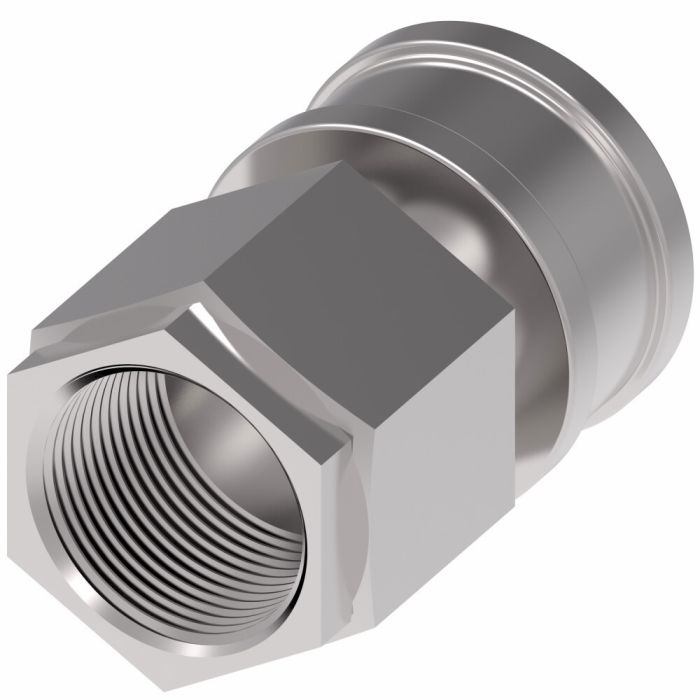

Constructed from 303 stainless steel with a Buna-N seal, this female half quick disconnect coupling is built for reliable fluid transfer across demanding industrial and mobile applications. The ball lock mechanism and push-to-connect end type allow fast coupling and decoupling without special tools, making it well suited for frequent connection cycles in agriculture, construction, oil and gas, transportation, and aerospace environments.
The Danfoss / Eaton Hansen HK Series coupling carries ISO 7241-1 Series B certification and exceeds ISO 16028 operating pressure thresholds. A 3/4 SAE port on the secondary end and a rated flow of 6 gallons per minute support a broad range of hydraulic tool and fluid transfer applications. The two-way valve design and a minimum working temperature of -40°F extend usability into cold-climate and specialty service environments, including military, medical, and food and beverage applications.
SKU: LL3H8
Supplier Part Number (MPN): LL3H8
|
Alternate Part Numbers
MINO-00015X14134
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
303 Stainless Steel
|
Product Width
1.42
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL3H8
|
Valve Type
2 way
|
Product Weight
0.52 lbs
|
