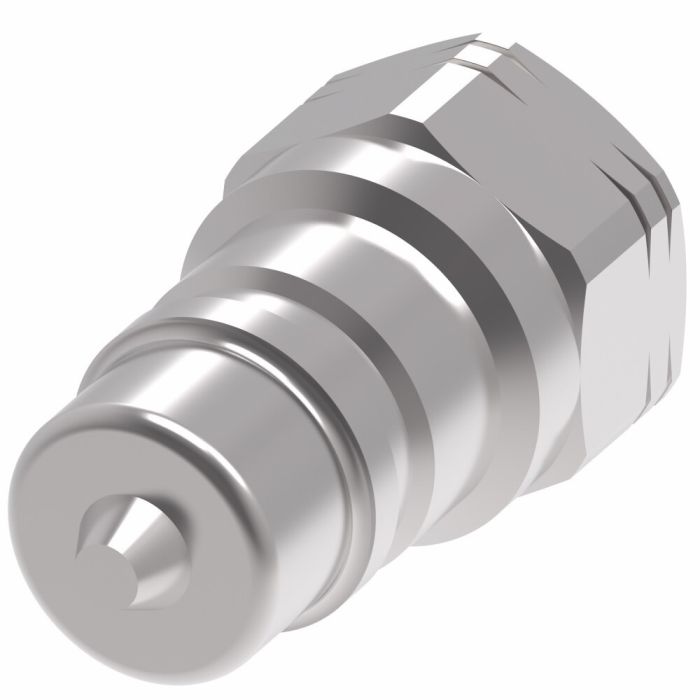

Designed for demanding hydraulic and fluid transfer applications, the Danfoss / Eaton Hansen Coupling is a male half quick disconnect plug built to ISO 7241-1 Series B certification. Constructed from 303 stainless steel with a Buna-N seal, it is suited for environments requiring corrosion resistance and reliable sealing across a wide temperature range, down to -40°F.
The push-to-connect end with a ball lock internal mechanism allows fast, tool-free coupling and disconnection, supporting flow rates up to 6 gallons per minute. The 3/4" SAE female end provides a standard interface compatible with common hydraulic tooling. This plug exceeds ISO 16028 operating pressures, making it a dependable choice across agriculture, construction, oil and gas, transportation, aerospace, and food and beverage applications, among others. The Hansen sub-brand backing and Aeroquip lineage reflect broad industry acceptance across both commercial and specialized sectors.
SKU: LL3K8
Supplier Part Number (MPN): LL3K8
|
Alternate Part Numbers
MINO-00015X14147
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
SAE
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
303 Stainless Steel
|
Product Width
1.15
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL3K8
|
Valve Type
2 way
|
Product Weight
0.07 lbs
|
