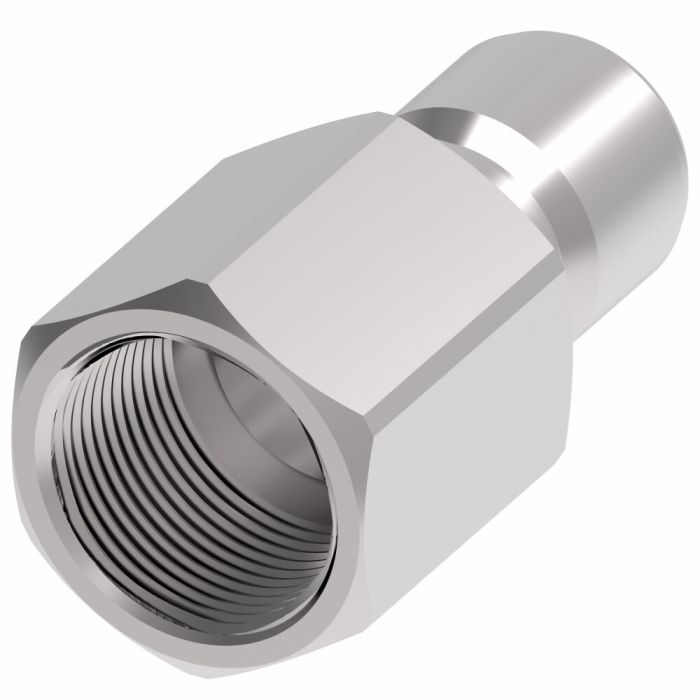

Constructed from stainless steel with Buna-N seals, this 3/8" male half coupling is built for reliable fluid transfer across a wide range of industrial environments, including chemical processing, food and beverage, injection molding, marine, medical, and pressure washing applications. The straight-through valve design supports a flow rate of 15 gallons per minute, while the ball lock internal connection mechanism ensures a secure, consistent mate.
The Danfoss / Eaton Hansen ST Series quick disconnect coupling plug connects via push-to-connect on the male end and accepts a 3/8" NPTF female port, eliminating the need for special tools during connection or disconnection. Rated for use in temperatures as low as -40°F, it meets and exceeds ISO 16028 operating pressure requirements. The Hansen sub-brand designation and Aeroquip brand affiliation place this coupling within a well-established product family used across demanding fluid transfer and industrial fluid power applications.
SKU: LL3T21
Supplier Part Number (MPN): LL3T21
|
Alternate Part Numbers
MINO-00015X14162
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.38
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
15 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/8
|
Product Material
Stainless Steel
|
Product Width
0.94
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL3T21
|
Valve Type
Straight Thru
|
Product Weight
0.12 lbs
|
