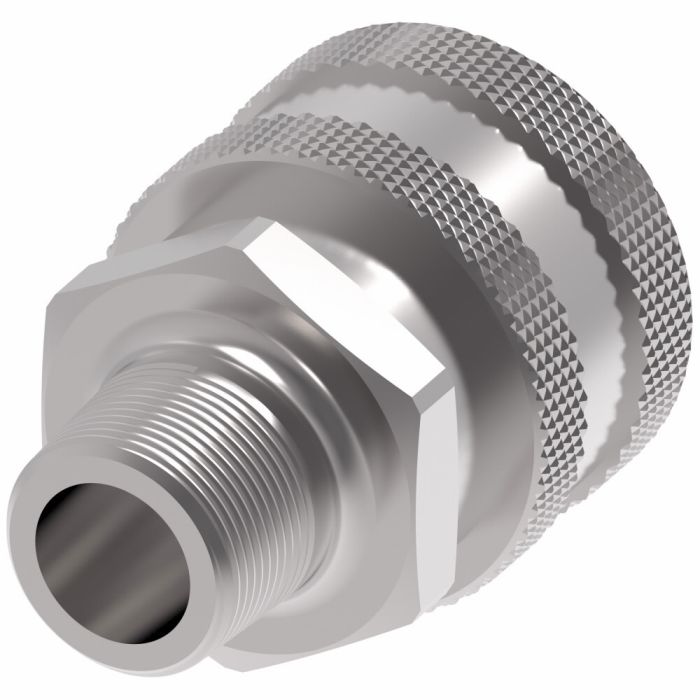

Designed for demanding fluid transfer applications, the Danfoss / Eaton SS 1/2 ST Series Socket x 1/2 MNPT is a stainless steel quick disconnect coupling socket with a ball lock internal connection. The female half connects via push-to-connect and mates to a 1/2" male NPT port, supporting flow rates up to 22 gallons per minute and operating in temperatures as low as -40°F.
Buna-N seals and a straight-through valve design make this coupling well-suited for use across a broad range of industries, including chemical processing, food and beverage, injection molding, medical, marine, pressure washing, and steam cleaning. No special tools are required for connection or disconnection, and the design exceeds ISO 16028 operating pressure standards.
Part of the Hansen ST Series from Eaton's Aeroquip brand, this coupling is manufactured at the Van Wert, Ohio facility and carries a 1/2" port size.
SKU: LL4S25
Supplier Part Number (MPN): LL4S25
|
Alternate Part Numbers
MINO-00015X14194
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
22 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/2
|
Product Material
Stainless Steel
|
Product Width
1.34
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL4S25
|
Valve Type
Straight Thru
|
Product Weight
0.15 lbs
|
