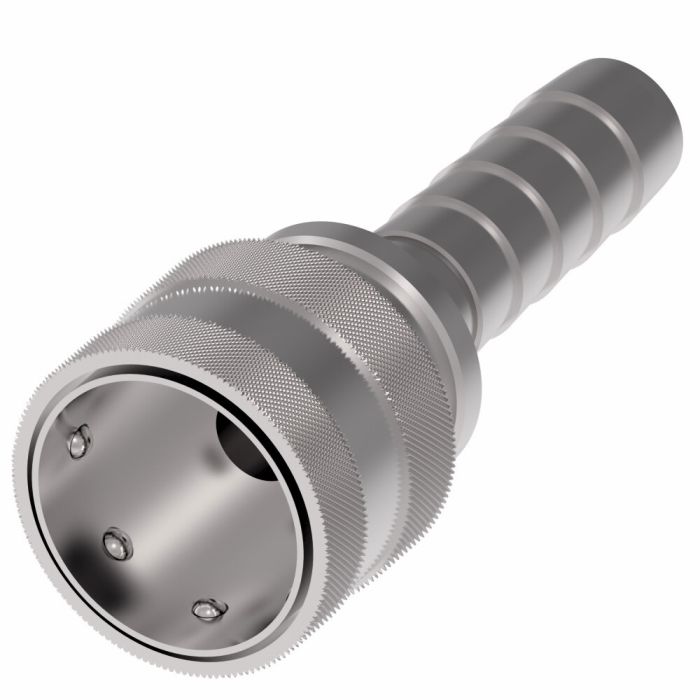

Designed for demanding fluid transfer applications, the Danfoss / Eaton Hansen ST Series Quick Disconnect Coupling is a stainless steel female half socket with a 1/2 in. port size and BSPP end connection. The straight-through valve design and ball lock internal mechanism support a flow rate of 22 gallons per minute, making it well suited for chemical processing, food and beverage, medical, marine, injection molding, pressure washing, and steam cleaning environments.
Push-to-connect functionality allows quick coupling and decoupling without special tools, reducing downtime during line changes or maintenance. Buna-N seals provide reliable fluid compatibility across a broad range of media, and the coupling exceeds ISO 16028 operating pressure requirements. Rated for a minimum working temperature of -4°F, this fitting performs reliably in cold-service conditions. No safety locking mechanism is incorporated, keeping the design straightforward for applications where one is not required.
SKU: LL4S26BS143
Supplier Part Number (MPN): LL4S26BS143
|
Alternate Part Numbers
MINO-00015X14200
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
22 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-4
|
Net Pack Quantity Units
EA
|
Port Size
1/2
|
Product Material
Stainless Steel
|
Product Width
1.34
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL4S26BS143
|
Valve Type
Straight Thru
|
Product Weight
0.37 lbs
|
