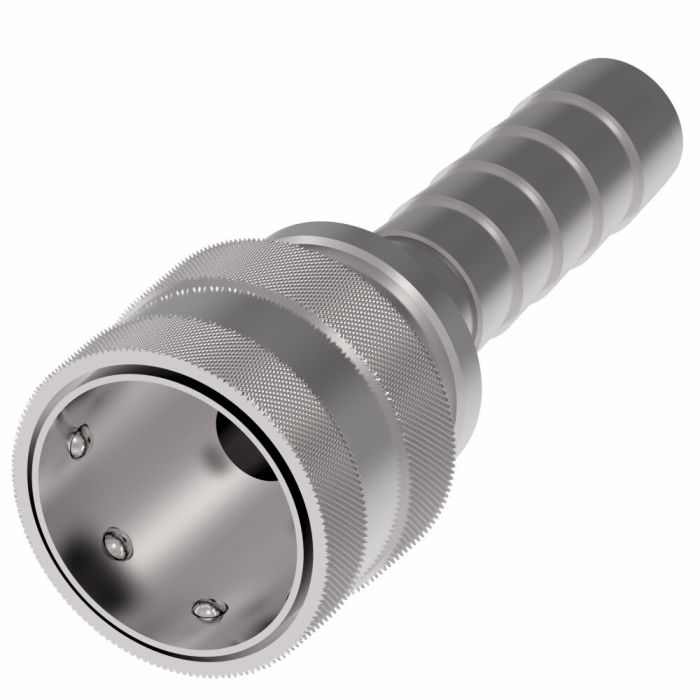

Constructed from stainless steel with a Buna-N seal, this female half quick disconnect coupling is designed for reliable fluid transfer across demanding industrial environments. The straight-through valve design and ball lock internal connection type support a flow rate of 22 gallons per minute, with a minimum working temperature of -40°F, making it well-suited for applications where temperature extremes and consistent performance are both concerns.
The Danfoss / Eaton Hansen ST Series coupling connects and disconnects without special tools and exceeds ISO 16028 operating pressures. Its push-to-connect end type allows for fast line connections in settings such as injection molding, pressure washing, marine, medical, chemical processing, food and beverage, and steam cleaning applications. With no safety locking mechanism, the design prioritizes straightforward, tool-free coupling in environments where quick changeovers are routine.
SKU: LL4S27
Supplier Part Number (MPN): LL4S27
|
Alternate Part Numbers
MINO-00015X14203
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Type 1
Push to Connect
|
End Type 2
Line/Hose/Tube
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
22 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Stainless Steel
|
Product Width
1.34
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL4S27
|
Valve Type
Straight Thru
|
Product Weight
0.12 lbs
|
