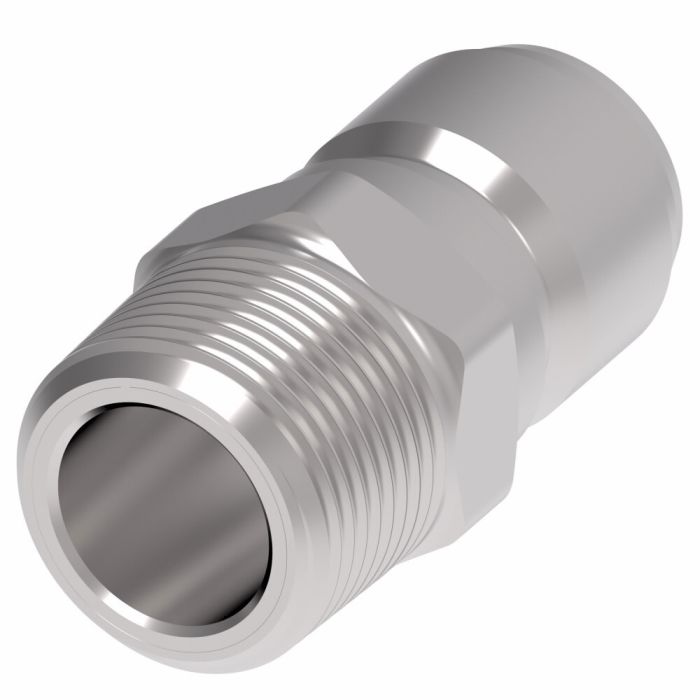

Designed for demanding fluid transfer applications, the Danfoss / Eaton Hansen Coupling is a stainless steel, male half quick disconnect plug built to exceed ISO 16028 operating pressures. It features a straight-through valve type with ball lock internal connection, supporting flow rates up to 22 gallons per minute while minimizing pressure drop across the coupling.
The push-to-connect end mates with a 1/2 in. BSPP female port, and Buna-N seals provide reliable fluid compatibility across a working temperature range starting at -40°F. No special tools are required for connection or disconnection, making it well suited for frequent line changes in chemical processing, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning environments. The Hansen sub-brand designation reflects Eaton's ST Series lineage, with stainless steel construction offering resistance to corrosion in washdown and process fluid applications.
SKU: LL4T26BS
Supplier Part Number (MPN): LL4T26BS
|
Alternate Part Numbers
MINO-00015X14208
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
BSPP
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
22 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
1/2
|
Product Material
Stainless Steel
|
Product Width
1.23
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL4T26BS
|
Valve Type
Straight Thru
|
Product Weight
0.21 lbs
|
