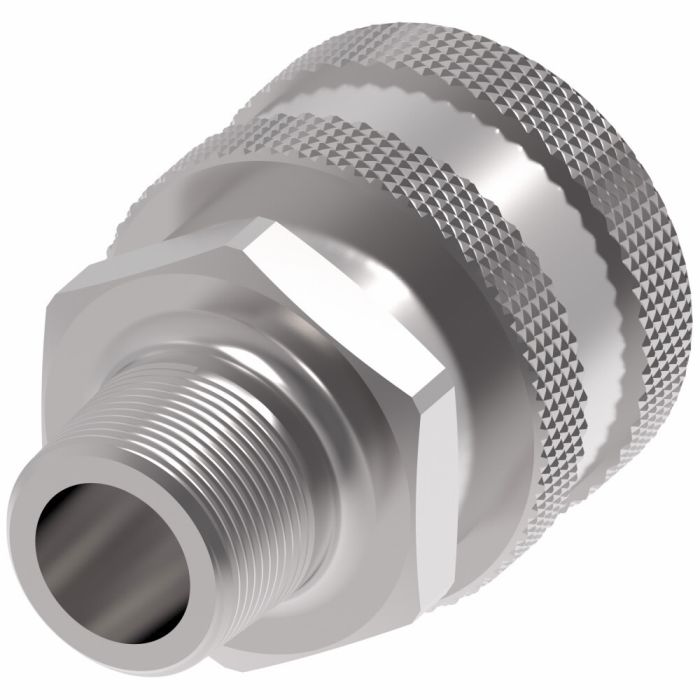

This DANFOSS / EATON/HANSEN CPLNG is a female half, push-to-connect socket designed for quick connect and disconnect functionality without the need for special tools. Constructed from stainless steel with Buna-N seals, it ensures reliable performance in fluid transfer applications.
Ideally suited for use in chemical, food and beverage, injection molding, marine, medical, and pressure washing systems, this coupling exceeds ISO 16028 operating pressures. The internal ball lock connection and straight-thru valve type facilitate a flow rate of up to 66 gallons per minute. It features a 3/4" port size and a 0.75" end size 2, with an NPTF male connection.
SKU: LL6S30
Supplier Part Number (MPN): LL6S30
|
Alternate Part Numbers
MINO-00015X14240
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13556
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Stainless Steel
|
Product Width
1.72
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL6S30
|
Valve Type
Straight Thru
|
Product Weight
0.25 lbs
|
