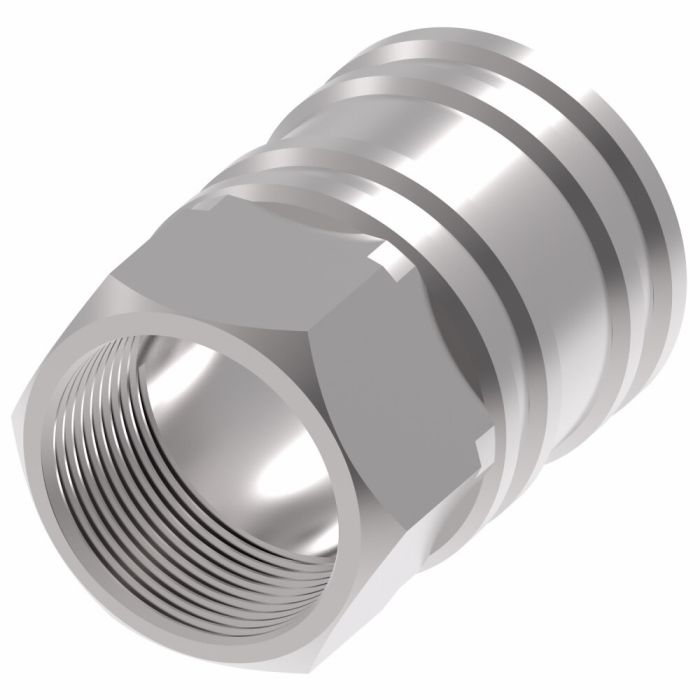

Constructed from stainless steel with a Buna-N seal, this female half quick disconnect coupling is designed for reliable fluid transfer across demanding industrial environments. The Danfoss / Eaton Cplng ST Series features a push-to-connect end with a 3/4" NPTF port and a straight-thru valve type, supported by a ball lock internal connection for secure engagement without the need for special tools.
Rated for flow up to 66 gallons per minute and operable down to -40°F minimum working temperature, this coupling is well-suited for applications including injection molding, pressure washing, steam cleaning, marine, medical, and food and beverage fluid transfer systems. The design exceeds ISO 16028 operating pressures, making it a dependable choice where performance consistency matters.
SKU: LL6S31
Supplier Part Number (MPN): LL6S31
|
Alternate Part Numbers
MINO-00015X14244
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Stainless Steel
|
Product Width
1.72
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL6S31
|
Valve Type
Straight Thru
|
Product Weight
0.62 lbs
|
