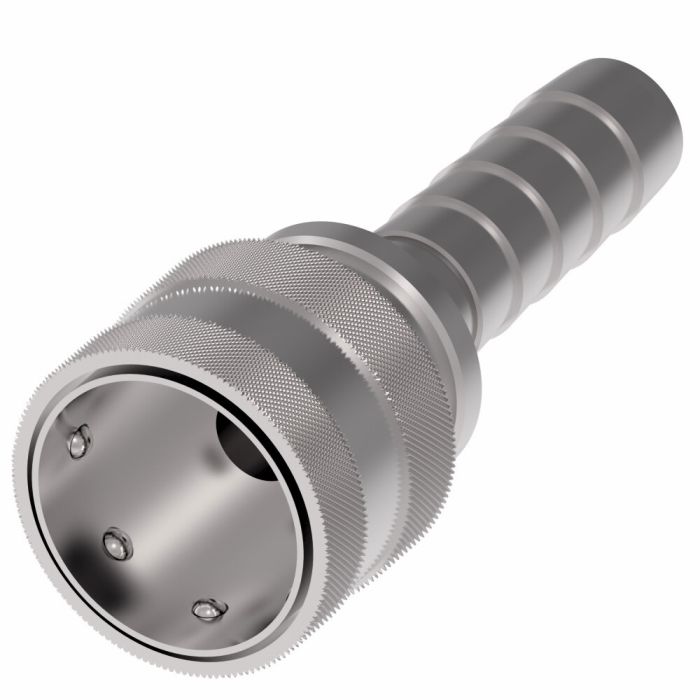

This Danfoss / Eaton Hansen ST Series quick disconnect coupling socket is suitable for fluid transfer, chemical, food and beverage, injection molding, marine, medical, and pressure washing applications. The LL6S32SL coupling features a push-to-connect end type and a line/hose/tube end type. It is constructed from stainless steel and uses a Buna-N seal material.
The quick connect and disconnect design eliminates the need for special tools. A sleeve lock provides a safety locking mechanism, and the coupling exceeds ISO 16028 operating pressures. This coupling utilizes a ball lock internal connection type and is designed with a straight thru valve type. It can function in minimum working temperatures as low as -40 degrees.
SKU: LL6S32SL
Supplier Part Number (MPN): LL6S32SL
|
Alternate Part Numbers
MINO-00015X14250
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Type 1
Push to Connect
|
End Type 2
Line/Hose/Tube
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Product Material
Stainless Steel
|
Product Width
1.72
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL6S32SL
|
Valve Type
Straight Thru
|
Product Weight
0.22 lbs
|
