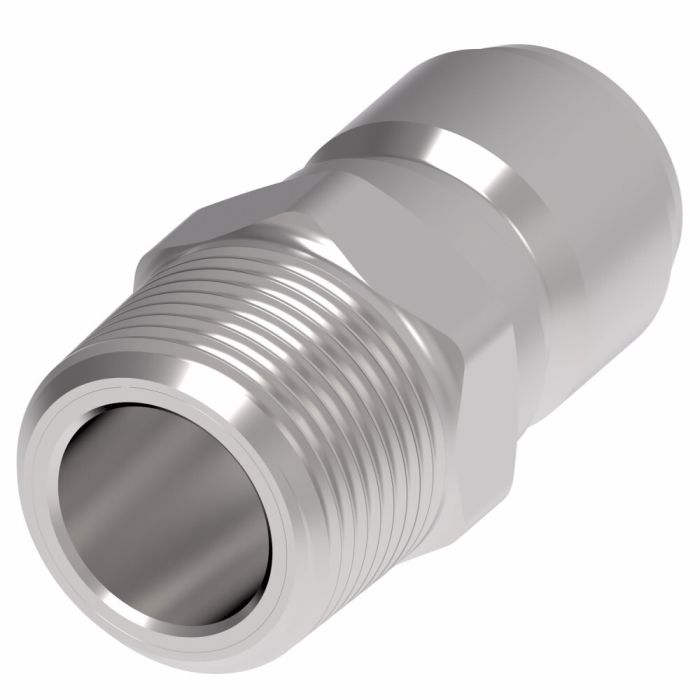

Engineered for demanding applications, the Danfoss / Eaton Hansen CPLNG Quick Disconnect Coupling Plug is a reliable choice for fluid transfer in diverse environments such as chemical processing, food and beverage industries, injection molding, and marine use. Designed with a robust stainless steel construction, this male half coupling guarantees durability and resistance to harsh conditions.
The coupling features a straight-thru valve type and a secure ball lock internal connection, allowing for seamless quick connect and disconnect actions without the need for special tools. It supports a flow rate of up to 66 gallons per minute and operates efficiently within a temperature range down to -40 degrees Fahrenheit. This model exceeds ISO 16028 operating pressures, ensuring optimal performance in critical applications.
With a push-to-connect end type and a 3/4-inch NPTF port size, this coupling is versatile and easy to integrate into existing systems. The Buna-N seal material enhances compatibility with various fluids, while the absence of a safety locking mechanism simplifies operation without compromising security.
SKU: LL6T30
Supplier Part Number (MPN): LL6T30
|
Alternate Part Numbers
MINO-00015X14251
|
Application
Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13556
|
End Size 2
0.75
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
66 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
Port Size
3/4
|
Product Material
Stainless Steel
|
Product Width
1.23
|
Safety locking Mechanism
None
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
LL6T30
|
Valve Type
Straight Thru
|
Product Weight
0.22 lbs
|
