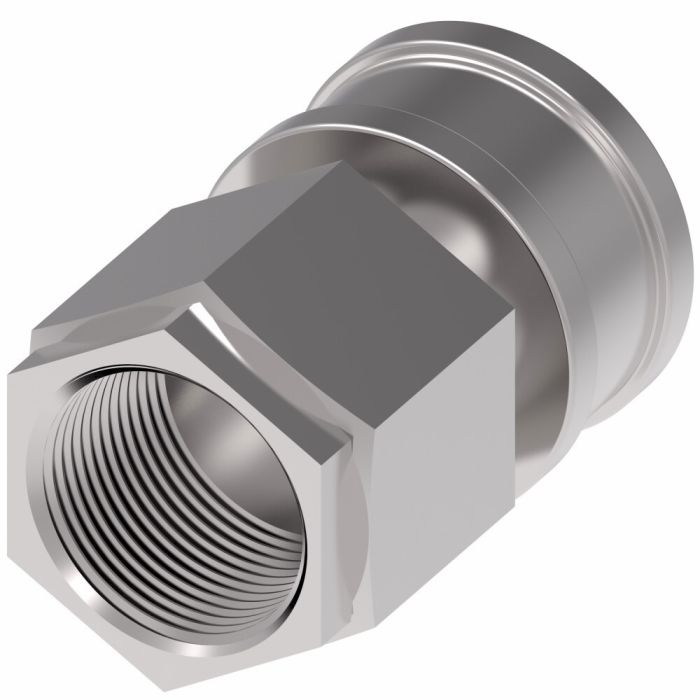

Constructed from 303 stainless steel with FKM seals, this 1-inch socket half is built for reliable fluid transfer across demanding industrial environments. The Danfoss / Eaton FEMale/ Socket Half belongs to the Hansen HK Series and features a ball lock internal connection mechanism with a push-to-connect end and a 1-inch NPTF port, supporting flow rates up to 50 gallons per minute.
Certified to ISO 7241-1 Series B and rated to exceed ISO 16028 operating pressures, this coupling half connects and disconnects without special tools, making it well suited for frequent line changes in agriculture, construction, oil and gas, aerospace, military, and transportation applications, among others. A minimum working temperature of -40°F extends its usability in cold-climate environments. The two-way valve design and FKM seal material support compatibility with a broad range of hydraulic fluids and chemical media.
SKU: LL8HP36143
Supplier Part Number (MPN): LL8HP36143
|
Alternate Part Numbers
MINO-00015X14263
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
1
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
50 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1
|
Product Material
303 Stainless Steel
|
Product Width
2.61
|
Safety locking Mechanism
None
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
LL8HP36143
|
Valve Type
2 way
|
Product Weight
1.03 lbs
|
