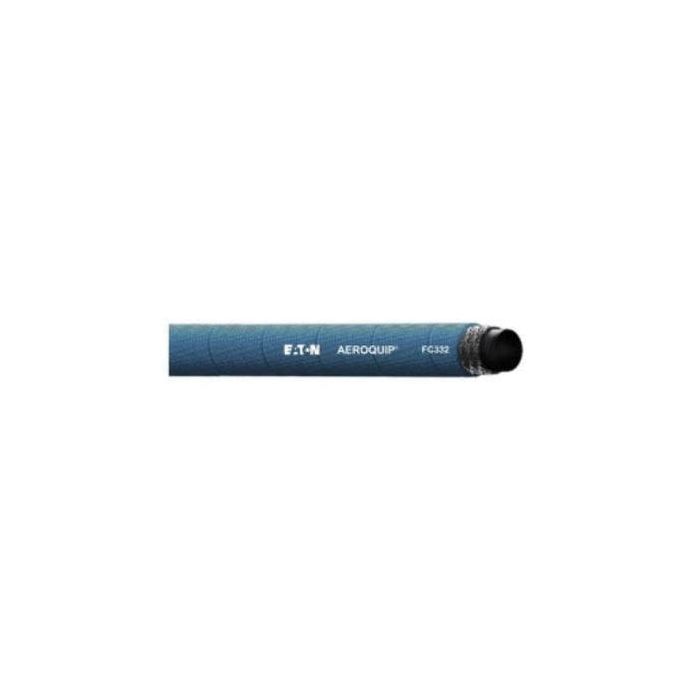

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.25 Inch ID, Up to 250.00 PSI

Ask A Question

Description & Features

Ideal for various industrial applications, this product features a high-quality AQPreg; elastomer tube, textile braid reinforcement, and a durable blue AQPreg; elastomer cover. Designed specifically for use with gasoline, fuel, and lubricating oils, it also works well with air and water in non-marine settings.

Operating efficiently within a temperature range of -40deg;F to +300deg;F, this hose ensures reliable performance under diverse conditions. Note that water temperature should not exceed +180deg;F and air temperature should remain below +250deg;F. The minimum bend radius of 3 inches and a maximum operating pressure of 250 PSI make it suitable for low-pressure tasks.

With a hose ID of 0.25 inches and an OD of 0.49 inches, this product maintains optimal flow rates. The maximum vacuum service rating of 28 inches adds to its versatility.

MPN: C1CR66

Supplier Part Number: FC332-04RL

Specifications

Color
Blue
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.25
Hose O.D.
0.49
Maximum Operating Pressure
250
Minimum Bend Radius
3
Minimum Bend Radius
3
Reel Qty (ft)
680
Supplier Part Number
FC332-04RL
Vacuum Service
28
Alternate Part Numbers
Alternate Part Number 310159, Alternate Part Number 586616, Alternate Part Number C1CR66, Alternate Part Number FC332-04RL, Alternate Part Number MI-00303227, Alternate Part Number MINO-00015F52071, Alternate Part Number MINO-00015X10242
Product Weight
0.37 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.25 Inch ID, Up to 250.00 PSI

FC332-04 Low Pressure Socketless AQP Hose

0.25

0.49

250

3

28

680

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.38 Inch ID, Up to 250.00 PSI

FC332-06 Low Pressure Socketless AQP Hose

0.38

0.63

250

3

28

560

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.50 Inch ID, Up to 250.00 PSI

FC332-08 Low Pressure Socketless AQP Hose

0.5

0.75

250

5

28

600

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.75 Inch ID, Up to 250.00 PSI

FC332-12 Low Pressure Socketless AQP Hose

0.75

1.04

250

7

18

367

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.63 Inch ID, Up to 250.00 PSI

FC332-10 Low Pressure Socketless AQP Hose

0.63

0.91

250

6

18

450-475

Product Questions & Answers (2)

Question by: Earl M on Feb 14, 2025, 12:55 PM
What's the max pressure this hose can handle, y'all?
Answer by: Customer Support on Feb 16, 2025, 6:11 AM
This AQP blue hose is rated for pressures up to 250 PSI.
Question by: Shawn T on Mar 4, 2025, 2:52 PM
what's the max pressure rating on this quarter inch blue hose
Answer by: Customer Support on Mar 5, 2025, 7:02 PM
Rated for up to 250 PSI, making it suitable for low pressure air lines and general utility applications where you need reliable performance without the bulk of heavy-duty hydraulic hose.
