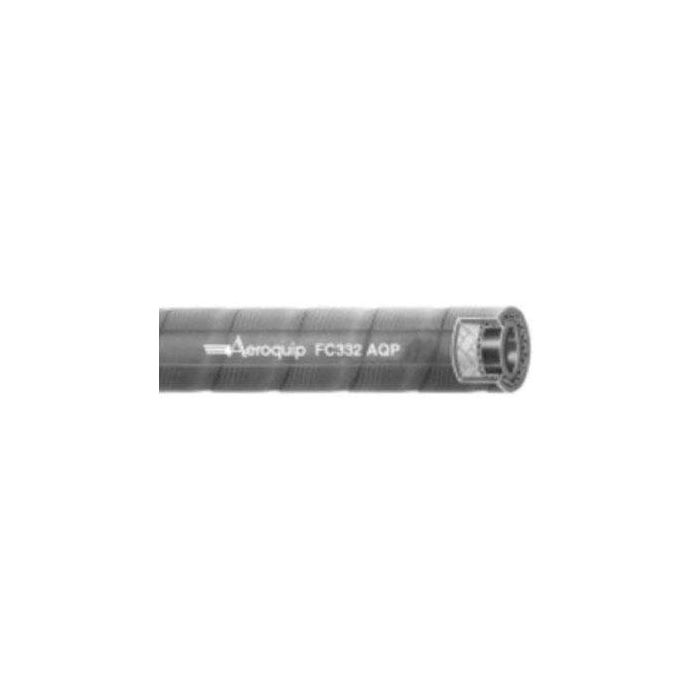

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.38 Inch ID, Up to 250.00 PSI

Ask A Question

Description & Features

Designed for diverse applications, the Aeroquip by Danfoss / Eaton FC332 Series Socketless Low Pressure Hose is specialized for transferring gasoline, fuel, lubricating oils, air, and water. It is constructed with a durable AQPreg; elastomer tube, reinforced with a textile braid, and finished with a distinctive blue AQPreg; elastomer cover.

The hose features a 0.38-inch internal diameter and a 0.63-inch outer diameter, ensuring optimal fluid flow while maintaining a maximum operating pressure of up to 250 PSI. Its minimum bend radius of 3 inches enhances flexibility, catering to various demanding uses in industrial settings.

The hose can operate efficiently in temperatures ranging from -40deg;F to +300deg;F, accommodating different working environments. Note that it is not recommended for marine fuel lines, hydraulic impulse applications, or approved for air brake systems.

ECCN: EAR99

Supplier Part Number: FC332-06RL

Specifications

Color
Blue
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.38
Hose O.D.
0.63
Maximum Operating Pressure
250
Minimum Bend Radius
3
Minimum Bend Radius
3
Reel Qty (ft)
560
Supplier Part Number
FC332-06RL
Vacuum Service
28
Alternate Part Numbers
Alternate Part Number C1CR67, Alternate Part Number FC332-06RL, Alternate Part Number MI-00309352, Alternate Part Number MINO-00015F59414
Product Weight
0.42 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.25 Inch ID, Up to 250.00 PSI

FC332-04 Low Pressure Socketless AQP Hose

0.25

0.49

250

3

28

680

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.38 Inch ID, Up to 250.00 PSI

FC332-06 Low Pressure Socketless AQP Hose

0.38

0.63

250

3

28

560

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.50 Inch ID, Up to 250.00 PSI

FC332-08 Low Pressure Socketless AQP Hose

0.5

0.75

250

5

28

600

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.75 Inch ID, Up to 250.00 PSI

FC332-12 Low Pressure Socketless AQP Hose

0.75

1.04

250

7

18

367

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.63 Inch ID, Up to 250.00 PSI

FC332-10 Low Pressure Socketless AQP Hose

0.63

0.91

250

6

18

450-475

Product Questions & Answers (6)

Question by: Patty O on Apr 18, 2025, 5:58 PM
got a little air line setup in the shop, will this blue hose handle 250 psi all day long?
Answer by: Customer Support on Apr 20, 2025, 5:09 PM
For pressure, it is rated up to 250 PSI maximum operating pressure. Temperature matters too. Air service is listed up to +250°F, so keep it within that limit when you are running it.
Question by: Troy S on Feb 6, 2026, 12:54 PM
Is this hose okay to use with regular gasoline, or is it just for air and water?
Answer by: Customer Support on Feb 8, 2026, 6:58 AM
This hose is designed for gasoline, fuel and lubricating oils, air, and water. However, it's not recommended for marine fuel lines or hydraulic impulse applications, and it's not approved for air brake applications.
Question by: Rod A on Apr 21, 2025, 4:01 PM
hose says it's good for air and water both, does that include running it on a compressor line or just shop air kinda stuff?
Answer by: Customer Support on Apr 23, 2025, 6:57 AM
Shop air, compressor lines, general pneumatic setups, all fair game with this hose. It's rated up to 250 PSI and handles air up to 250 degrees F, so most compressor applications in a typical shop environment fall well within those limits. Just keep in mind it's not approved for air brake systems, so don't run it on any brake line work.
Question by: Brent B on Sep 12, 2025, 12:37 PM
got a little shop compressor, is this blue 3/8 hose ok for air lines up to 250 psi?
Answer by: Customer Support on Sep 13, 2025, 8:49 PM
For compressed air work, the key limits are pressure and temperature. This FC332-06 hose is rated up to 250 PSI max operating pressure, and it is built to handle air along with fluids like gasoline, fuel, lubricating oils, and water. It also has a -40°F to +300°F temperature range.
Question by: Dwayne G on Apr 21, 2025, 9:18 AM
What's the smallest I can bend this hose without kinking it?
Answer by: Customer Support on Apr 23, 2025, 7:47 AM
The minimum bend radius for this hose is 3 inches, so keep that in mind during installation.
Question by: Sheila W on Jun 4, 2025, 3:08 PM
hose rated for both air and fuel use, or just one of them?
Answer by: Customer Support on Jun 6, 2025, 8:38 AM
Both, actually. The FC332 handles air, gasoline, fuel, lubricating oils, and water. That multi-fluid capability is kind of the whole point of this series. The 3/8-inch ID keeps flow moving well across those different media, and the AQP elastomer construction holds up to the range. Just keep in mind it is not approved for marine fuel line use or air brake systems, so those two applications are off the table regardless of what fluid you are running.
