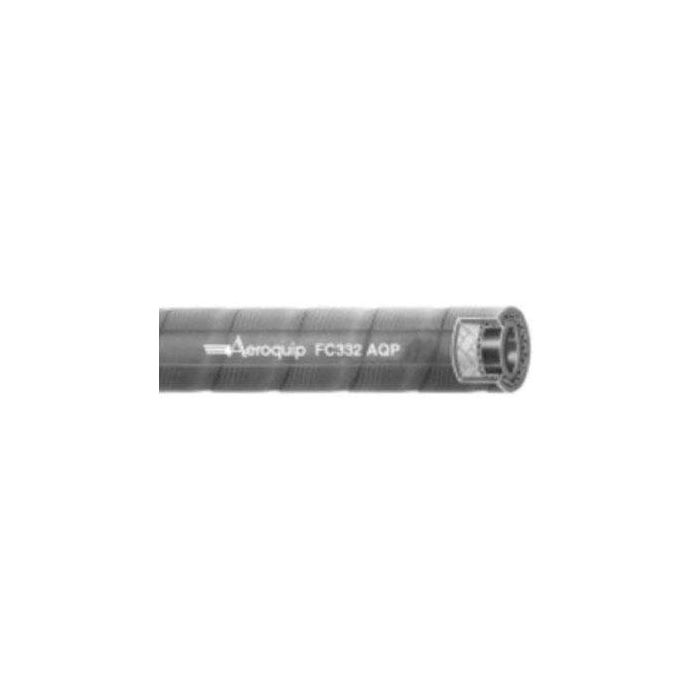

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.50 Inch ID, Up to 250.00 PSI

Ask A Question

Description & Features

Engineered for reliable performance, this hose is designed for various industrial applications, including transport of gasoline, fuel, lubricating oils, air, and water. Its precise construction features a durable AQPreg; elastomer tube with textile braid reinforcement.

Suitable for environments with temperatures ranging from -40deg;F to +300deg;F, this hose ensures maximum efficiency in extreme conditions, with water usage not exceeding +180deg;F and air usage not exceeding +250deg;F. The blue AQPreg; elastomer cover provides an added layer of protection.

With a 0.50 inch I.D. and the ability to handle pressures up to 250 PSI, it boasts a minimum bend radius of 5 inches and a vacuum service rating of 28 inches Hg. The reel accommodates lengths of up to 600 feet, making it ideal for extensive setups.

Its application-specific design makes it unsuitable for marine fuel lines, hydraulic impulse, or air brake applications, ensuring that it meets specific industrial standards.

Supplier Part Number: FC332-08RL

Specifications

Color
Blue
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.50
Hose O.D.
0.75
Maximum Operating Pressure
250
Minimum Bend Radius
5
Minimum Bend Radius
5
Reel Qty (ft)
600
Supplier Part Number
FC332-08RL
Vacuum Service
28
Alternate Part Numbers
Alternate Part Number C1CR68, Alternate Part Number FC332-08RL, Alternate Part Number MI-00303228, Alternate Part Number MINO-00015F52072
Product Weight
0.46 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.25 Inch ID, Up to 250.00 PSI

FC332-04 Low Pressure Socketless AQP Hose

0.25

0.49

250

3

28

680

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.38 Inch ID, Up to 250.00 PSI

FC332-06 Low Pressure Socketless AQP Hose

0.38

0.63

250

3

28

560

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.50 Inch ID, Up to 250.00 PSI

FC332-08 Low Pressure Socketless AQP Hose

0.5

0.75

250

5

28

600

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.75 Inch ID, Up to 250.00 PSI

FC332-12 Low Pressure Socketless AQP Hose

0.75

1.04

250

7

18

367

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.63 Inch ID, Up to 250.00 PSI

FC332-10 Low Pressure Socketless AQP Hose

0.63

0.91

250

6

18

450-475

Product Questions & Answers (5)

Question by: Rod T on Apr 27, 2025, 6:09 AM
got a small shop air line setup, is this blue hose ok for air tools and what pressure can it handle
Answer by: Customer Support on Apr 28, 2025, 6:05 PM
For shop air and general air and water service, it’s a good fit as long as you stay within its limits. The maximum operating pressure is 250 PSI, and for air service the temperature should not exceed 250°F.
Question by: Bobby T on May 20, 2025, 3:11 PM
got a shop compressor running air lines to a few pneumatic tools, this blue hose rated for that kind of use?
Answer by: Customer Support on May 21, 2025, 3:37 PM
Air service is one of the primary uses this hose was built for. It handles up to 250 PSI and stays flexible down to negative 40 degrees F, so cold shop mornings won't make it brittle. Just keep in mind it's not approved for air brake applications, so don't run it on any brake system lines. For general shop air and pneumatic tooling, you're in good shape.
Question by: Jean H on Jun 9, 2025, 9:37 AM
Running this on an air compressor setup at the shop, it says 250 PSI max, but what's the temp limit when it's carrying air?
Answer by: Customer Support on Jun 11, 2025, 6:34 AM
For air service, the upper temperature limit is 250 degrees F. The hose handles a wide range overall, rated from -40 degrees F all the way up to 300 degrees F, but air use specifically is capped at 250 degrees F. That half-inch inside diameter and 250 PSI pressure rating make it a solid fit for most shop air lines, as long as you stay within those boundaries.
Question by: Terry A on May 11, 2025, 6:41 PM
What kind of fluids can this hose handle without issues?
Answer by: Customer Support on May 13, 2025, 2:07 PM
This hose is engineered to reliably transport gasoline, fuel, lubricating oils, air, and water in various industrial applications.
Question by: Ross K on Aug 28, 2025, 9:46 PM
got a tight spot to route it, how sharp can i bend this 1/2 inch blue hose without kinkin it
Answer by: Customer Support on Aug 30, 2025, 12:58 PM
For routing, the minimum bend radius on this hose is 5 inches. Keeping your bend at 5 inches or larger helps it hold its shape and flow without stressing the textile braid reinforcement.
