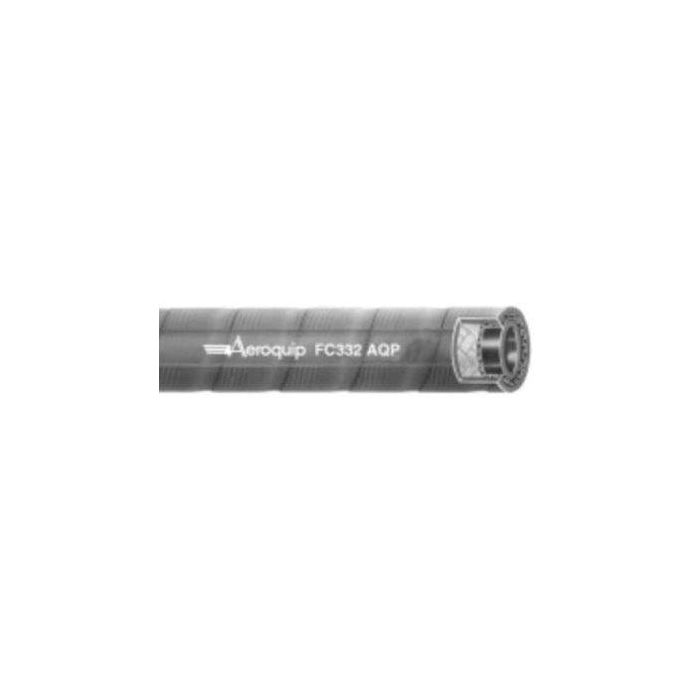

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.63 Inch ID, Up to 250.00 PSI

Ask A Question

Description & Features

The Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose 0.63 Inch ID Up to 250.00 PSI is designed for applications involving gasoline fuel and lubricating oils air and water. With a construction featuring an AQP elastomer tube textile braid reinforcement and a blue AQP elastomer cover this hose ensures reliable performance.

With a maximum operating pressure of 250 PSI and a minimum bend radius of 6 inches this hose meets a variety of industrial challenges. Its temperature range spans from -40F to +300F with water not exceeding +180F and air not exceeding +250F. The hose's vacuum service capacity is 18 inches.

Ideal for use in diverse industrial settings the FC332 Series is a dependable choice. Note that it is not recommended for marine fuel lines hydraulic impulse applications or air brake applications.

MPN: EAR99

Supplier Part Number: FC332-10RL

Specifications

Color
Blue
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.63
Hose O.D.
0.91
Maximum Operating Pressure
250
Minimum Bend Radius
6
Minimum Bend Radius
6
Reel Qty (ft)
450-475
Supplier Part Number
FC332-10RL
Vacuum Service
18
Alternate Part Numbers
Alternate Part Number C1CR69, Alternate Part Number FC332-10RL, Alternate Part Number MI-00303225, Alternate Part Number MINO-00015F52069, Alternate Part Number MINO-00015X00113
Product Weight
0.68 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.25 Inch ID, Up to 250.00 PSI

FC332-04 Low Pressure Socketless AQP Hose

0.25

0.49

250

3

28

680

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.38 Inch ID, Up to 250.00 PSI

FC332-06 Low Pressure Socketless AQP Hose

0.38

0.63

250

3

28

560

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.50 Inch ID, Up to 250.00 PSI

FC332-08 Low Pressure Socketless AQP Hose

0.5

0.75

250

5

28

600

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.75 Inch ID, Up to 250.00 PSI

FC332-12 Low Pressure Socketless AQP Hose

0.75

1.04

250

7

18

367

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.63 Inch ID, Up to 250.00 PSI

FC332-10 Low Pressure Socketless AQP Hose

0.63

0.91

250

6

18

450-475

Product Questions & Answers (3)

Question by: Tony C on Oct 24, 2025, 1:40 PM
How tight of a bend can this hose handle without kinking up?
Answer by: Customer Support on Oct 25, 2025, 2:53 PM
You'll want to keep the bend radius at a minimum of 6 inches to avoid any problems.
Question by: Duane A on Dec 6, 2025, 7:26 AM
Running air lines in a shop that gets real cold in winter and blazing hot in summer, will this hose hold up across that kind of temperature swing?
Answer by: Customer Support on Dec 7, 2025, 5:45 PM
Temperature range on this hose runs from -40F all the way up to +300F for most applications, so seasonal shop conditions are well within what it handles. Air service specifically is rated up to +250F, which covers just about any ambient environment you'd run into. The AQP elastomer construction keeps it flexible even at the low end, so cold mornings shouldn't cause cracking or stiffening issues.
Question by: Hugh E on Feb 23, 2026, 7:21 PM
got a small shop air line setup. is this blue hose alright for straight compressed air use, and what’s the temp limit?
Answer by: Customer Support on Feb 25, 2026, 6:04 AM
For shop air and general air service, it’s built for air, water, gasoline fuel, and lubricating oils with an AQP elastomer tube and cover plus textile braid reinforcement. Temperature range is -40F to +300F overall, with air not exceeding +250F.
