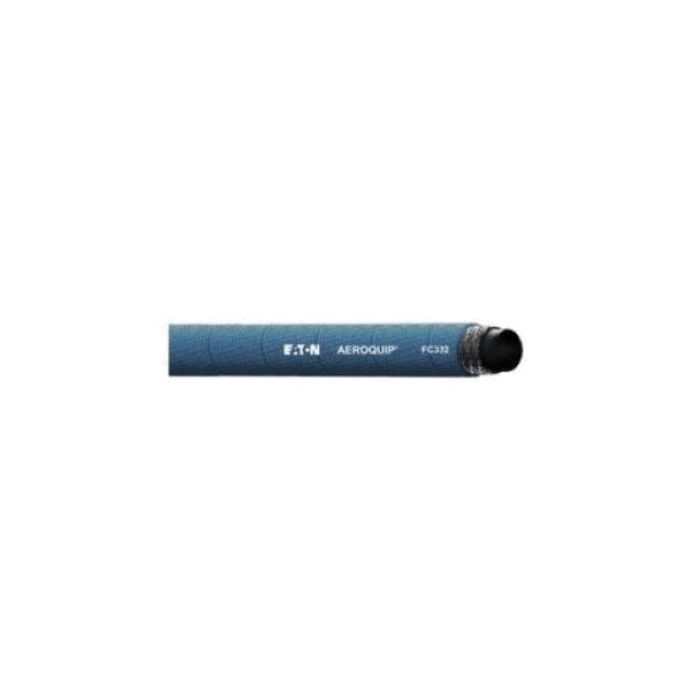

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.75 Inch ID, Up to 250.00 PSI

Ask A Question

Description & Features

The Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.75 Inch ID, Up to 250.00 PSI offers robust performance for various industrial applications. Designed for gasoline, fuel, lubricating oils, air, and water, this hose is a versatile solution with a maximum operating pressure of 250 PSI. Constructed with an AQPreg; elastomer tube and textile braid reinforcement, the blue AQPreg; elastomer cover ensures durability. Its temperature range spans from -40deg;F to +300deg;F, while water temperatures should not exceed +180deg;F and air temperatures should not exceed +250deg;F. Offering a hose I.D. of 0.75 inches and an O.D. of 1.04 inches, the minimum bend radius stands at 7 inches for flexible installations. This hose is not recommended for marine fuel lines or hydraulic impulse applications and is not approved for air brake applications.

Supplier Part Number: FC332-12RL

MPN: EAR99

Specifications

Color
Blue
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.75
Hose O.D.
1.04
Maximum Operating Pressure
250
Minimum Bend Radius
7
Minimum Bend Radius
7
Reel Qty (ft)
367
Supplier Part Number
FC332-12RL
Vacuum Service
18
Alternate Part Numbers
Alternate Part Number C1CR70, Alternate Part Number FC332-12RL, Alternate Part Number MI-00303305, Alternate Part Number MINO-00015F52147
Product Weight
0.77 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.25 Inch ID, Up to 250.00 PSI

FC332-04 Low Pressure Socketless AQP Hose

0.25

0.49

250

3

28

680

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.38 Inch ID, Up to 250.00 PSI

FC332-06 Low Pressure Socketless AQP Hose

0.38

0.63

250

3

28

560

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.50 Inch ID, Up to 250.00 PSI

FC332-08 Low Pressure Socketless AQP Hose

0.5

0.75

250

5

28

600

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.75 Inch ID, Up to 250.00 PSI

FC332-12 Low Pressure Socketless AQP Hose

0.75

1.04

250

7

18

367

Air & Multi-Purpose Textile Braid Low Pressure Socketless AQP Blue Hose, 0.63 Inch ID, Up to 250.00 PSI

FC332-10 Low Pressure Socketless AQP Hose

0.63

0.91

250

6

18

450-475

Product Questions & Answers (5)

Question by: Randy T on Mar 26, 2025, 10:53 AM
What kinda stuff can I run through this FC332-12 hose?
Answer by: Customer Support on Mar 27, 2025, 5:25 PM
This hose is made to handle gasoline, fuel and lubricating oils, air, and water. Just a heads up, it's not the right choice for marine fuel lines or hydraulic impulse applications. And definitely don't use it for air brakes.
Question by: Roy M on Aug 27, 2025, 7:47 AM
does this hose handle both air and water, or is it just one or the other?
Answer by: Customer Support on Aug 28, 2025, 6:14 PM
Both are covered. The FC332 is rated for air up to 250 PSI and water service as well, though water use is capped at 180 degrees F and air at 250 degrees F. The overall temperature range runs from negative 40 up to 300 degrees F, so it holds up across a pretty wide spread of conditions. Just keep in mind it is not approved for air brake systems and should not be used in hydraulic impulse applications.
Question by: Larry P on Jul 26, 2025, 7:32 AM
got a 3/4 inch line on a little air setup, is this blue Aeroquip hose alright for that kind of use?
Answer by: Customer Support on Jul 28, 2025, 7:25 AM
For shop air and general air service, it fits the job within its limits. It is rated up to 250 PSI max operating pressure, and the air temperature should stay at or below 250°F.
Question by: Roy C on Oct 31, 2025, 9:06 AM
What kind of stuff can I run through this hose without worryin' 'bout it breakin' down?
Answer by: Customer Support on Nov 1, 2025, 10:07 AM
This hose handles gasoline, fuel, lubricating oils, air, and water just fine. Keep in mind that for water, you shouldn't exceed +180°F, and for air, +250°F.
Question by: Wes J on May 27, 2025, 5:18 PM
got a 3/4 inch air line running to a compressor setup in the shop, this hose gonna hold up to the pressure we're pushing through it?
Answer by: Customer Support on May 29, 2025, 6:03 AM
For standard shop air use, 250 PSI is the max operating pressure on this hose, and air temperature needs to stay at or below 250 degrees F. The 0.75 inch ID lines up with your 3/4 inch setup, so the fit should work. Just keep in mind this one is not approved for air brake applications, so if that's part of the picture, you'd want a different hose.
