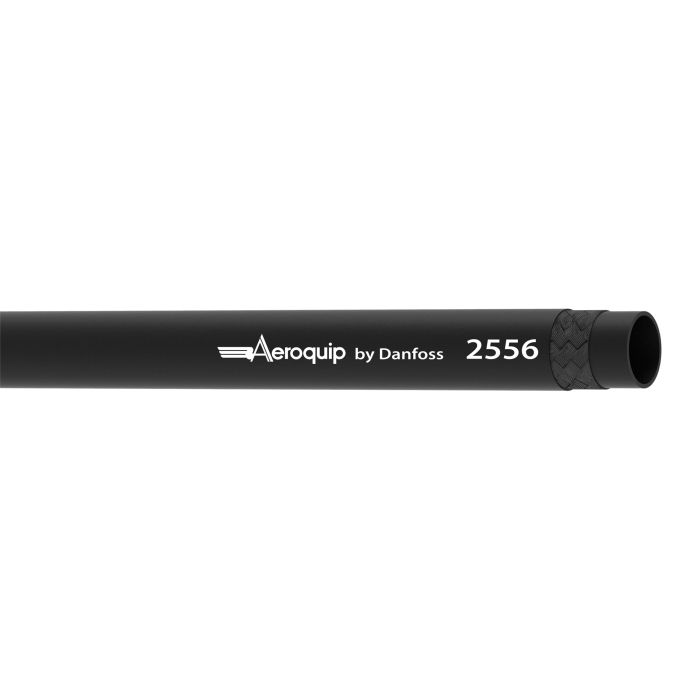

main product photo

Air & Multi-Purpose Textile Braid Low Pressure Socketless Black Hose, 0.25 Inch ID, Up to 360.00 PSI

Ask A Question

Description & Features

The air and multi-purpose textile braid low pressure socketless black hose has a durable construction featuring a synthetic rubber tube and textile braid reinforcement. Ideal for various industrial applications, this hose is suitable for gasoline, fuel, lubricating oils, air, and water. Not recommended for marine fuel lines or hydraulic impulse applications.

The black synthetic rubber cover ensures longevity and durability under demanding conditions, with a temperature range of -40deg;F to +212deg;F. The hose maintains its integrity with a maximum operating pressure of 360 PSI and a minimum bend radius of 1.5 inches. Not approved for air brake applications.

Its optimized design includes an internal diameter of 0.25 inches and an outer diameter of 0.49 inches. The hose is vacuum service rated up to 28 inches Hg. With an extended reel quantity of 850 feet, itrsquo;s a reliable choice for long-term projects.

MPN: C1BH31

Supplier Part Number: 2556-4RL

Specifications

Color
Black
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
12.00
UOM
FT
Hose I.D.
0.25
Hose O.D.
0.49
Maximum Operating Pressure
360
Minimum Bend Radius
1.50
Minimum Bend Radius
1.5
Reel Qty (ft)
850
Supplier Part Number
2556-4RL
Vacuum Service
28
Alternate Part Numbers
Alternate Part Number 20011221, Alternate Part Number 2556-4, Alternate Part Number C1BH31, Alternate Part Number MI-04149400, Alternate Part Number MINO-00015X00067
Product Weight
0.35 lbs

Related Documents

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Burst Pressure Minimum Bend Radius Vacuum Service Reel Qty (ft) Price Action
Air & Multi-Purpose Textile Braid Low Pressure Socketless Black Hose, 0.38 Inch ID, Up to 300.00 PSI

2556-6RL Low Pressure Socketless Hose

0.38

0.62

300

2.75

28

560

Air & Multi-Purpose Textile Braid Low Pressure Socketless Black Hose, 0.63 Inch ID, Up to 250.00 PSI

2556-10 Low Pressure Socketless Hose

0.63

0.97

250

6

10

450-475

Air & Multi-Purpose Textile Braid Low Pressure Socketless Black Hose, 0.75 Inch ID, Up to 250.00 PSI

2556-12 Low Pressure Socketless Hose

0.75

1.09

250

7

10

367

Air & Multi-Purpose Textile Braid Low Pressure Socketless Black Hose, 0.50 Inch ID, Up to 300.00 PSI

2556-8 Low Pressure Socketless Hose

0.5

0.75

300

3.5

28

600

Product Questions & Answers (2)

Question by: Floyd M on Mar 29, 2025, 12:51 PM
got a little air line setup in the shop. is this 1/4 inch hose ok for regular compressed air use, and what temp can it handle
Answer by: Customer Support on Mar 30, 2025, 9:35 PM
For shop air and general air service, this hose is rated up to 360 PSI and it has an air temperature limit of +160°F. The overall temperature range is -40°F to +212°F, but air has its own cap at 160°F.
Question by: Lance C on Sep 24, 2025, 11:37 AM
got a little 1/4 inch line i need to run for shop air, is this hose ok pressure wise or am i pushin it
Answer by: Customer Support on Sep 26, 2025, 6:10 AM
For pressure, you are capped at 360 PSI max operating pressure on this hose. If your air line stays at or under that, it fits the rating. It is also not approved for air brake applications, and it is not recommended for hydraulic impulse service.
