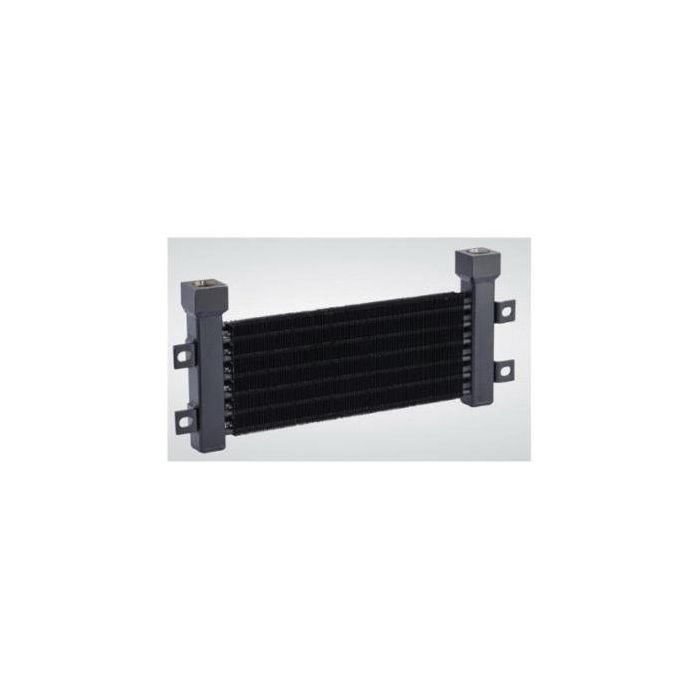

main product photo

M & MR Series Air Cooled Mobile Heat Exchanger, SAE-16 Ports, 0.81 sq ft Face Area

Ask A Question

Description & Features

The API Heat Transfer M & MR Series Air Cooled Mobile Heat Exchanger SAE-16 Ports 0.81 sq ft Face Area features high strength construction with robust steel manifolds. This heat exchanger has a maximum operating temperature of 400F and a pressure rating of 300 PSI ensuring optimal performance in various industrial applications.

The inclusion of copper tubes and aluminum fins provides efficient thermal transfer while the optional internal by-pass valves offer cost-effective solutions by reducing additional component needs. Capable of heat removal up to 90 000 BTU/Hr it supports oil flows up to 100 GPM making it suitable for demanding applications that require reliable cooling.

The M-15-S is designed with SAE-16 ports with additional options for SAE Straight Thread and Male JIC 37 flare ports delivering versatility in installation.

Supplier Part Number: M-15-S

Specifications

Brand
TTP
a Dimensions
8 in
b Dimensions
14-1/2 in
c Dimensions
10.88 in
Compatible Hydraulic Fluids
Bearing Lube Oil, Hydraulic Motor Oil, Hydrostatic Drive Oil and Lube Oil Circuits
Connection Type
SAE
d Dimensions
18.22 in
Dimensions
10.88 in H x 19.72 in W x 1.5 in D
e Dimensions
16.72 in
f Dimensions
5-1/2 in
g Dimensions
19.72 in
Material
Copper
Maximum Oil Temperature
110 to 130 deg F Hydraulic Motor Oil, 130 to 180 deg F Hydrostatic Drive Oil, 120 to 160 deg F Bearing Lube Oil, 110 to 130 deg F Lube Oil Circuits
Model
M-15
Mounting Type
Bracket
Oil Inlet Port Connection Type
SAE
Oil Inlet Port Size
#16
Oil Outlet Port Connection Type
SAE
Oil Outlet Port Size
#16
Port
SAE 16

Similar Products

Model Number Bypass Spring a Dimensions b Dimensions c Dimensions d Dimensions e Dimensions f Dimensions G Ports Face Area Price Action
M & MR Series Air Cooled Mobile Heat Exchanger, 1 NPT Ports, 1.21 sq ft Face Area

M-20 M & MR Series Heat Exchanger

12 in

14-1/2 in

14.88 in

18.22 in

16.72 in

9-1/2 in

19.72

1 NPT

1.21

M & MR Series Air Cooled Mobile Heat Exchanger, 1-1/4 NPT Ports, 3.25 sq ft Face Area

M-30 M & MR Series Heat Exchanger

24 in

19-1/2 in

26.88 in

23.22 in

21.72 in

21-1/2 in

24.72

1-1/4 NPT

3.25

Product Questions & Answers (3)

Question by: Cheryl A on Dec 6, 2025, 2:16 PM
Running hydraulic oil on a skidder most of the day, temps been climbing more than I'd like. How much heat can this thing actually pull out?
Answer by: Customer Support on Dec 8, 2025, 6:52 AM
Rated for up to 90,000 BTU/hr of heat removal with oil flows up to 100 GPM, so it's got enough capacity for heavy-duty mobile equipment running hard through long shifts. The copper tubes and aluminum fins handle thermal transfer efficiently, and the steel manifolds are built to hold up under rugged conditions. Operating pressure ceiling is 300 PSI, so as long as your system stays within that range, you've got solid cooling headroom.
Question by: Tammy A on Feb 14, 2026, 7:06 PM
Reckon this'll hold up okay for hydraulic oil cooling on a sawmill? We run pretty steady.
Answer by: Customer Support on Feb 16, 2026, 10:08 AM
Designed for demanding applications, this heat exchanger can remove up to 90,000 BTU/Hr and handle oil flows up to 100 GPM, which should suit a sawmill running at a consistent pace.
Question by: Hugh R on Jul 19, 2025, 12:05 PM
got a hydraulic setup that runs pretty warm, how much heat can this cooler actually pull out?
Answer by: Customer Support on Jul 21, 2025, 7:58 AM
Under typical use it is rated for up to 90,000 BTU per hour of heat removal, and it is intended for oil flow rates up to 100 GPM.
