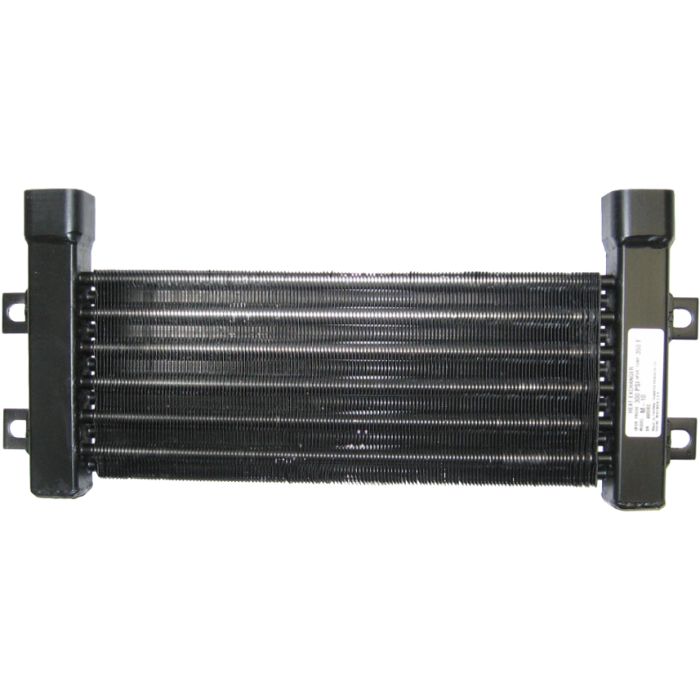

M & MR Series Air Cooled Mobile Heat Exchangers, Up To 90000 BTU/hr Heat Removal
Description & Features
| Features | High strength construction, rugged steel manifolds. Optional internal by-pass valves eliminate piping and reduce costs. Heat removal to 90,000 BTU/Hr. Oil flows up to 100 GPM. NPT ports are standard (SAE Straight Thread and Male JIC 37° flare ports are optional). |
| Materials | Copper tubes. Aluminum fins. Steel manifolds, connections, turbulators, relief valve.. |
| Maximum Operating Temperature | 400°F. |
| Pressure Rating | 300 PSI Operating. 300 PSI Test. |
Products
| Model Number | Bypass Spring | A | B | C | D | E | F | G | Ports | Face Area | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
M-15-S M & MR Series Heat Exchanger |
|
8 |
14.5 |
10.88 |
18.22 |
16.72 |
5.5 |
19.72 |
SAE-16 |
0.81 |
|
|
M-20 M & MR Series Heat Exchanger |
|
12 |
14.5 |
14.88 |
18.22 |
16.72 |
9.5 |
19.72 |
1 NPT |
1.21 |
|
|
M-30 M & MR Series Heat Exchanger |
|
24 |
19.5 |
26.88 |
23.22 |
21.72 |
21.5 |
24.72 |
1-1/4 NPT |
3.25 |
|
Product Questions & Answers (1)
Question by: Randy H on Jun 13, 2025, 6:26 AM
How hot can this thing run, out in the field?
Answer by: Customer Support on Jun 14, 2025, 8:58 PM
Maximum operating temperature for these heat exchangers is 400°F.
