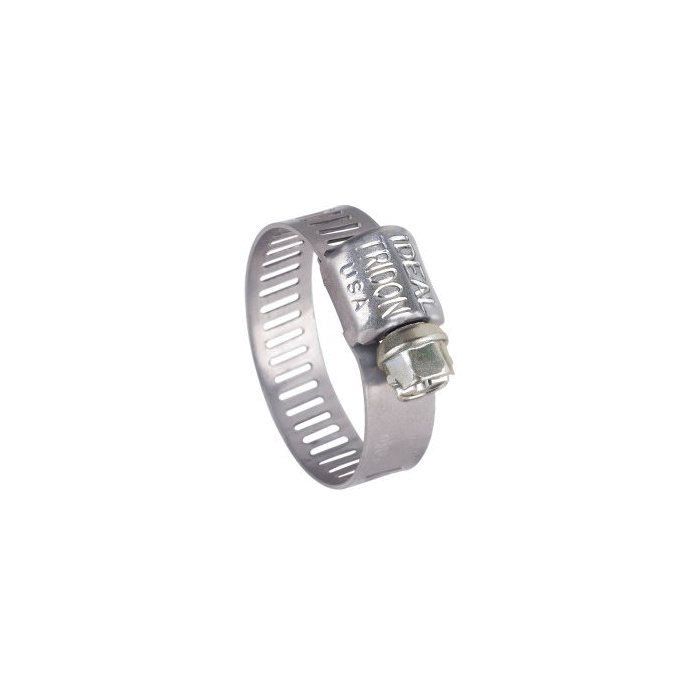

MAH Series Stainless Steel Worm Gear Clamp, 0.3125 Inch Width, 0.56 To 1.06 Inch Diameter

Description & Features

Constructed from SAE 300 series stainless steel for the band and housing and SAE 410 series stainless steel screw this SS Worm Gear Clamp is designed for durability and excellent corrosion resistance.

With a width of 0.3125 inches it accommodates diameters ranging from 0.5625 to 1.0625 inches ensuring a versatile fit for various applications requiring secure connections.

The MAH Series Stainless Steel Worm Gear Clamp 0.3125 Inch Width 0.56 To 1.06 Inch Diameter employs a combination of 1/4 hexagon and screwdriver slot for flexible tightening methods allowing for straightforward installation and adjustment.

Maximizing its clamping efficiency this product features a maximum recommended torque of 10 in. lbs. providing a firm grip that maintains stability under different conditions.

MPN: C1DD75

Supplier Part Number: 62M1051

Specifications

Brand Ideal Clamp Products	Brand Ideal Clamp Products	Pack Size 1.00	UOM EA	Maximum Diameter 1.06	Minimum Diameter 0.56	Supplier Part Number 62M1051	Product Weight 0.99 lbs	Alternate Part Numbers Alternate Part Number 62M10-51, Alternate Part Number C1DD75, Alternate Part Number MAH10, Alternate Part Number MI-00347094, Alternate Part Number MINO-00240F82462

Similar Products

Model Number	Width (in)	Minimum Diameter	Maximum Diameter
MAH-4 MAH Series Worm Gear Clamp	0.3125	0.2188	0.63
MAH-10 MAH Series Worm Gear Clamp	0.3125	0.5625	1.0625
MAH-6 MAH Series Worm Gear Clamp	0.3125	0.4375	0.7813

Product Questions & Answers (1)

Question by: Vince H on Nov 14, 2025, 5:57 PM

clamp's only 5/16 wide, will that be enough to hold a hose steady without slipping or letting pressure creep through?

Answer by: Customer Support on Nov 15, 2025, 7:21 PM

For connections in the 9/16 to 1-1/16 inch diameter range, that band width handles the job fine. The max recommended torque is 10 in. lbs., so as long as you're not cranking past that, the clamp seats evenly and holds without walking or loosening under normal conditions. The all-stainless build, 300 series band and housing with a 410 series screw, adds to the grip staying consistent over time without corrosion eating into the contact surface.
