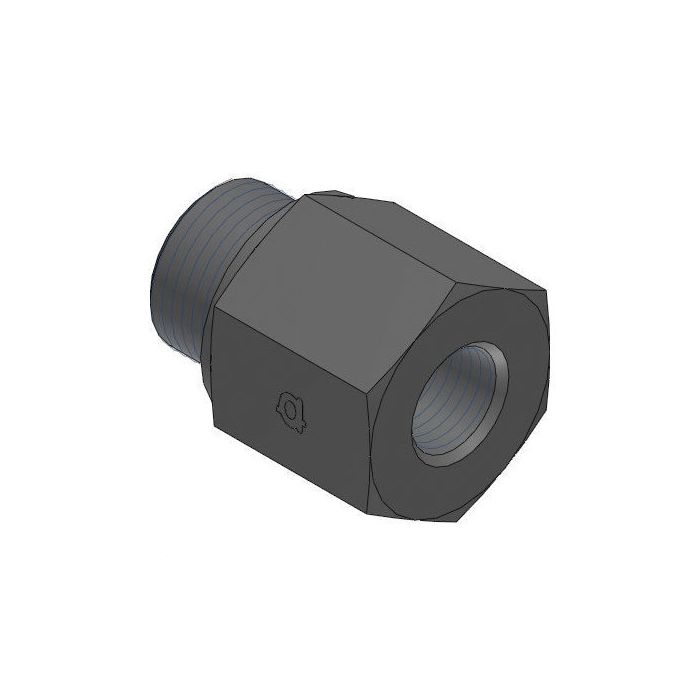

main product photo

Male Din (Sealed) X Female Npt

Ask A Question

Description & Features

A straight steel adapter threading an M14 x 1.5 male Din tube connection to a 3/8-18 NPTF female port, this Male Din (Sealed) X Female Npt fitting is manufactured by Adaptall for reliable performance in hydraulic line assemblies. The sealed Din side provides a metal-to-metal sealing interface, helping maintain system integrity under pressure.

Constructed from steel, the straight configuration keeps the connection inline, making it well suited for installations where space or routing requires a direct, low-profile transition between Din tube and NPT threaded ports. Compatible with standard hydraulic components using 3/8" NPT female connections.

SKU: 9636S-14-S06-06

Supplier Part Number (MPN): 9636S-14-S06-06

Specifications

Brand
adapt-all
Connection Size 1
6 mm
Connection Size 2
3/8 in
Connection Type
FNPT, Male Metric
Connection Type 1
Male DIN Tube
Connection Type 2
Female NPTF
Dimension Standards
ANSI B1.20.3, DIN 2353, ISO 8434-1
Dimensions
37.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9636S Series
Thread Size
M14x1.5 x 3/8-18

Product Questions & Answers (1)

Question by: Brett D on Nov 9, 2025, 10:12 AM
Got a hydraulic line running M14 x 1.5 DIN tube on one end and need to tie into a 3/8" NPT female port on the equipment. this the right fitting for that?
Answer by: Customer Support on Nov 11, 2025, 6:14 AM
That's what this adapter is built for. One side is an M14 x 1.5 male DIN tube connection, and the other side threads into a 3/8-18 NPTF female port. Steel construction, straight configuration, so it keeps everything inline without adding any offset. Should drop right into that application without any fuss.
