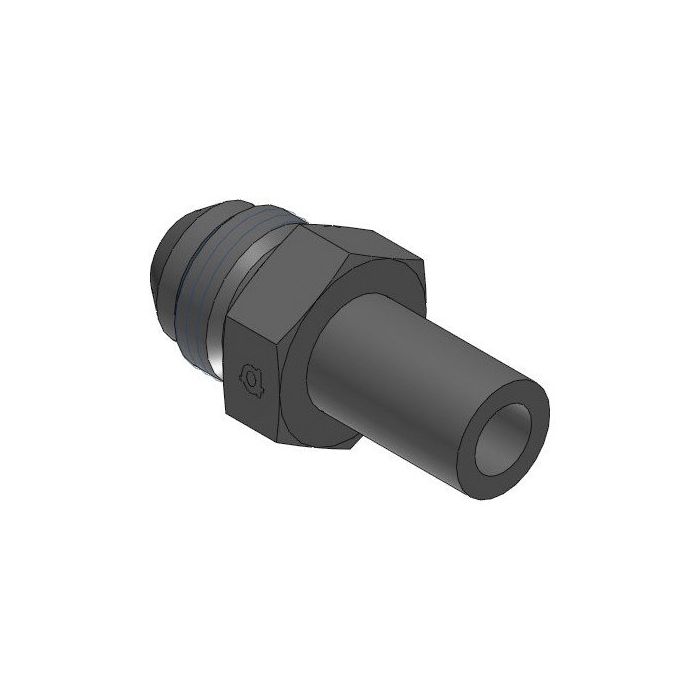

Stainless Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 6 mm Metric Standpipe, Straight

Ask A Question

Description & Features

The ADAPTALL ADAPTER offers a secure interface for industrial-grade connections. Designed from high-quality stainless steel it ensures superior corrosion resistance and durability suitable for demanding industrial sectors.

This adapter features precision-engineered threads providing a reliable fit with 7/16-20 for Thread 1 and 6 mm for Thread 2. Its design facilitates a seamless transition between metric and JIC 37 flare standards making it an ideal choice for hydraulic systems and specialized industry applications.

Without the inclusion of thread sealant the installation process is straightforward ensuring easy maintenance and replacement when necessary. This product caters to requirements where a robust and leak-free connection is crucial.

MPN: SS9200-04-06

Supplier Part Number: SS9200-04-06

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
6 mm
Connection Type
Female Standpipe, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female DIN Standpipe
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
41 mm L
Fitting Type
Adapter
Hex Size
14 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9200 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20 x 6 in

Similar Products

Model Number Thread Size Thread 2 Price Action
Stainless Steel Adapter, 7/16-20 Male JIC 37 deg Flare To 8 mm Metric Standpipe, Straight

SS9200-04-08 Male JIC To Standpipe Adapter

7/16-20 x 8 in

8

Stainless Steel Adapter, 9/16-18 Male JIC 37 deg Flare To 10 mm Metric Standpipe, Straight

SS9200-06-10 Male JIC To Standpipe Adapter

9/16-18 x 10 in

10

Product Questions & Answers (1)

Question by: Norm T on May 28, 2025, 9:00 AM
got a hose end that’s 7/16-20 JIC, will this adapter mate up to it and then go to a 6 mm standpipe?
Answer by: Customer Support on May 30, 2025, 6:41 AM
Built for that exact transition, it has a 7/16-20 male JIC 37 degree flare on one side (Thread 1) and a 6 mm metric standpipe connection on the other side (Thread 2), in a straight adapter body.
