Male Jic X Male Bspp

Description & Features

Designed for seamless integration in hydraulic systems, this male JIC to male BSPP fitting provides reliable connectivity and adaptability. Constructed from robust steel, it ensures durability and longevity under demanding conditions. The fitting features a straight shape with precise threading, facilitating a secure and leak-proof connection. Side 1 boasts a 1-1/16 - 12 UN thread size accommodating a 3/4" male JIC connection, while Side 2 offers a G 3/8 - 19 thread, supporting a 3/8" male BSPP interface, making it versatile for various applications.

With dimensions of 28.5mm width and 46mm length, this Adaptall brand connector is engineered to meet rigorous industrial standards, ensuring compatibility and performance. Ideal for high-pressure environments, it is suited for use in hydraulic machinery and equipment, where precise and reliable fittings are crucial.

SKU: 9005-12-06

Supplier Part Number (MPN): 9005-12-06

Specifications

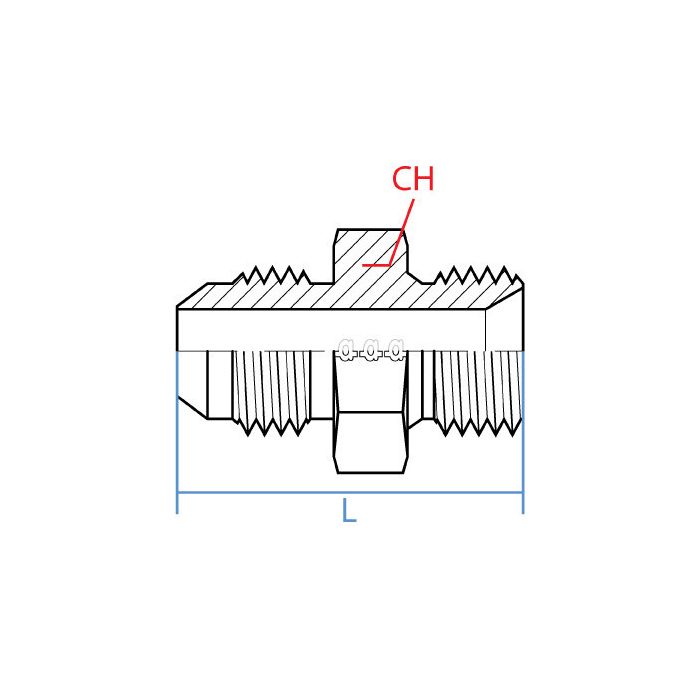

CH Width 28.5mm	L Length 46mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-12-06	Product Weight 0.25 lbs

Product Questions & Answers (3)

Question by: Jimmy H on Apr 1, 2026, 12:06 PM

got a machine running JIC lines on one end and BSPP ports on the other, will this fitting bridge that gap without needing extra adapters in between?

Answer by: Customer Support on Apr 2, 2026, 3:47 PM

Yeah, that's exactly what this one's built for. One end threads into a 3/4" male JIC connection using a 1-1/16-12 UN thread, and the other end connects directly to a 3/8" male BSPP port with a G 3/8-19 thread. Straight body, no extra pieces needed. Steel construction holds up fine in hydraulic line work where you're dealing with real pressure and regular use.

Question by: Steve B on Jan 26, 2026, 9:24 AM

got a hose end that’s 3/4 JIC male, and the port on the other side is G 3/8. is this the right little adapter to tie those together?

Answer by: Customer Support on Jan 27, 2026, 12:13 PM

To match it up, you want Side 1 to be a 3/4 inch male JIC with 1-1/16 - 12 UN threads, and Side 2 to be a 3/8 inch male BSPP with G 3/8 - 19 threads. That is exactly how this straight steel fitting is configured.

Question by: Denise B on Apr 6, 2026, 10:38 AM

Will this fitting hold up okay in a hydraulic system that sees pretty high pressure?

Answer by: Customer Support on Apr 8, 2026, 6:44 AM

Constructed from robust steel, this fitting is designed for demanding hydraulic environments, offering durability and longevity under high-pressure conditions.
