Male Jic X Male Metric Thread

Description & Features

Designed for straight-through connections between JIC and metric hydraulic lines, this steel Male JIC X Male Metric Thread adapter from Adaptall bridges a 3/4-16 UNF JIC fitting on one end with an M18 x 1.5 metric thread on the other. Both ends are male, making it suitable for joining male-threaded ports or fittings with the appropriate female counterparts on each side.

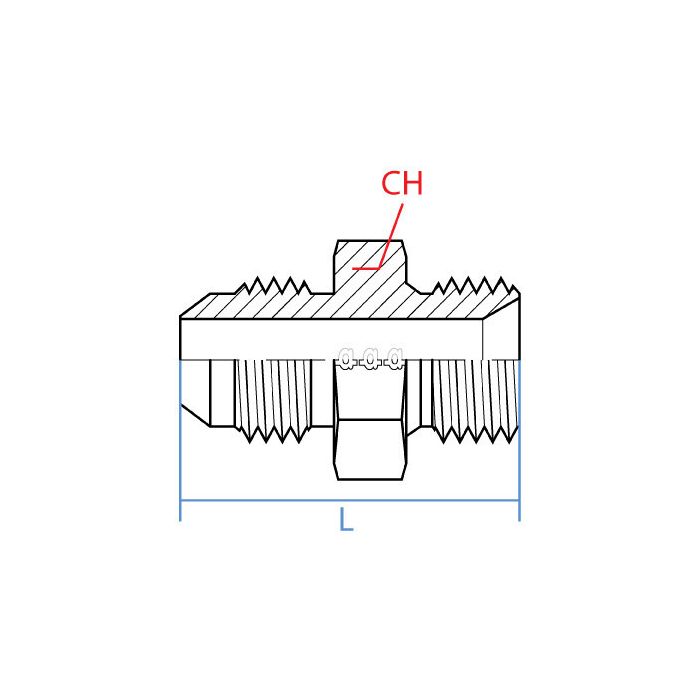

Constructed from steel, the adapter measures 37.9mm in length with a 24mm wrench width, providing a compact, rigid connection point in tight installations. The straight profile keeps the fluid path direct, with a 1/2" JIC side pairing cleanly against 18mm metric components. This adapter is well-suited for hydraulic circuits that require transitioning between SAE JIC and metric-threaded components, common in mixed-standard mobile or industrial hydraulic systems.

SKU: 9067-08-18

Supplier Part Number (MPN): 9067-08-18

Specifications

Connection Size 1 3/4 in	Connection Size 2 18 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 24 mm	Material Steel	Material Construction Carbon Steel	Series 9067 Series	Thread Size M18x1.5 x 3/4-16

Product Questions & Answers (2)

Question by: Daryl H on May 27, 2025, 11:30 AM

Reckon this would work to hook up a hydraulic line running metric to one that's JIC? Just need somethin' to go between 'em.

Answer by: Customer Support on May 29, 2025, 9:55 AM

This adapter is designed to bridge that exact gap, connecting a 3/4-16 UNF JIC fitting to an M18 x 1.5 metric thread.

Question by: Judy C on Dec 1, 2025, 6:16 PM

got a 3/4-16 JIC line and the other side on my valve is M18 x 1.5. is this the straight adapter for that?

Answer by: Customer Support on Dec 3, 2025, 8:53 AM

For a straight-through hookup between those two thread standards, this adapter matches 3/4-16 UNF JIC on one male end and M18 x 1.5 metric on the other male end.
