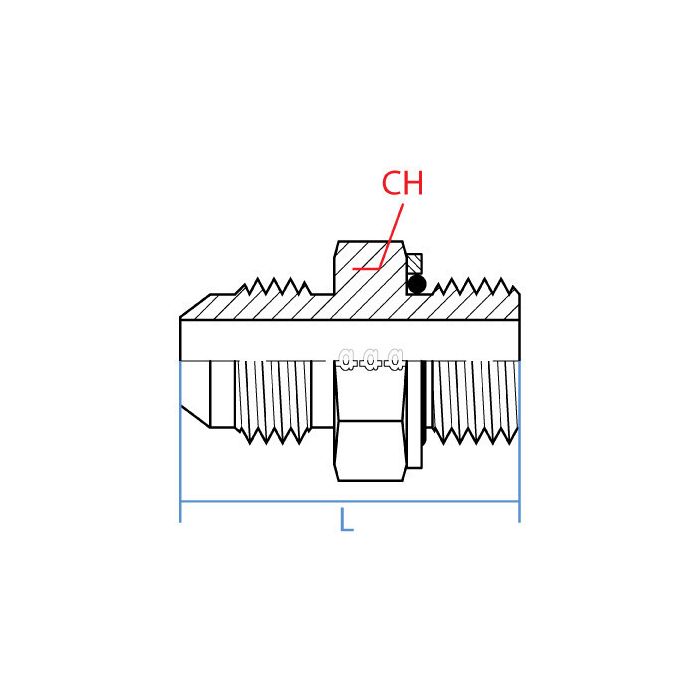

main product photo

Male Jic X Male Metric W/Seal

Ask A Question

Description & Features

Constructed from steel in a straight configuration, this adapter provides a reliable transition between a 1-7/8-12 UN male JIC connection (1-1/2" side) and an M48 x 2.0 male metric thread with seal. The Male Jic X Male Metric W/Seal is well-suited for hydraulic circuits where JIC and metric-threaded components must be joined without adapting to an intermediate fitting type.

Manufactured by Adaptall, the fitting measures 63.3mm in overall length with a 60mm wrench width, making it compatible with standard industrial tooling. The included seal on the metric side supports a secure, leak-resistant connection in demanding hydraulic environments.

SKU: 9068-24-48

Supplier Part Number (MPN): 9068-24-48

Specifications

Connection Size 1
1-7/8 in
Connection Size 2
M48
Connection Type
Male JIC, Male Metric
Connection Type 1
Male JIC
Connection Type 2
Male Metric with O-ring
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Finish
Zinc-Plated
Fitting Type
Adapter
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
4000 psi
Series
9068 Series
Thread Size
1-7/8-12 x M48x2

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Lee W on Aug 15, 2025, 2:30 PM
Got a metric port on a pump housing and need to tie into a JIC line coming off the manifold. This fitting work for that kind of hookup?
Answer by: Customer Support on Aug 16, 2025, 5:30 PM
Straight male-to-male adapters like this one are built exactly for that situation. One end threads into your M48 x 2.0 metric port, the other connects to a 1-7/8-12 UN JIC line on the 1-1/2" side. The seal on the metric end helps keep things tight without needing extra tape or thread compound on that side. At 63.3mm overall length, it sits compact enough to work in most standard pump and manifold setups without fighting for clearance.
