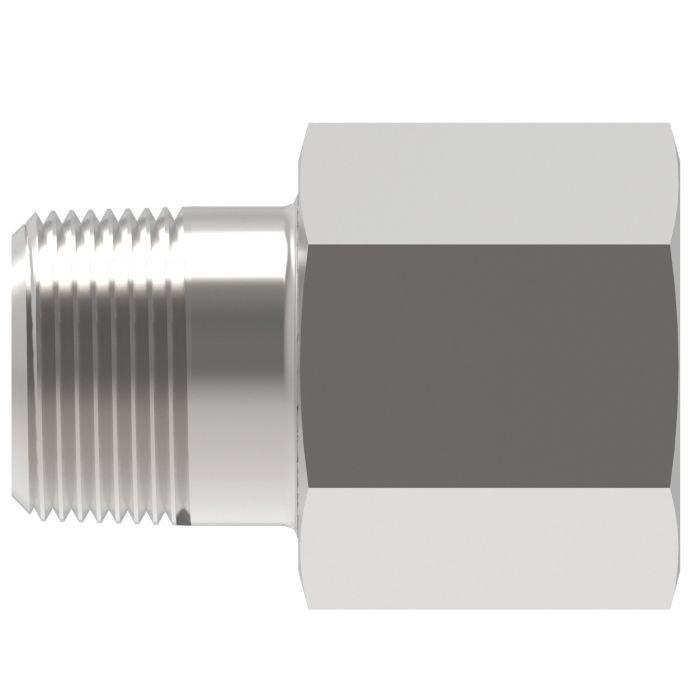

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

Ask A Question

Description & Features

This Eaton Aeroquip steel adapter features a 1-11-1/2 male NPT to 1-5/16-12 female SAE O-ring boss connection in a straight configuration. Designed for use in demanding hydraulic applications, this steel adapter ensures reliable performance across diverse industries.

With an "A" dimension of 1.91, this adapter is suitable for marine/military, chemical processing, pulp and paper, and food and beverage applications, as well as off-shore drilling environments. Refer to the provided fluid compatibility document to ensure reliable performance with your application media.

SKU: 2246-16-16S

Supplier Part Number (MPN): 2246-16-16S

Alternate Part Numbers: C1BD35, MI-00319374, MINO-00015F65423

Specifications

A
1.91
Alternate Part Numbers
Alternate Part Number C1BD35, Alternate Part Number MI-00319374, Alternate Part Number MINO-00015F65423, Alternate Part Number MINO-00925X09705
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
1
End Type 1
NPTF
End Type 2
SAE ORB
Minimum Working Temperature
-40
Supplier Part Number
2246-16-16S
Thread 1
1-11-1/2
Thread 2
1-5/16-12
Thread Sealant
No
Tube I.D. 1
0.94
Product Weight
0.20 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A Price Action
Steel Adapter, 1/4-18 Male NPT To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

2246-4-6S Male NPT To Female ORB Adapter

1/4-18

9/16-18

1.36

Steel Adapter, 3/8-18 Male NPT To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

2246-6-8S Male NPT To Female ORB Adapter

3/8-18

3/4-16

1.45

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6404-04-04 Male NPT To Female ORB Adapter

1/4-18

7/16-20

1.32

Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

2246-12-12S Male NPT To Female ORB Adapter

3/4-14

1-1/16-12

1.92

Steel Adapter, 1-11-1/2 Male NPT To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

2246-16-16S Male NPT To Female ORB Adapter

1-11-1/2

1-5/16-12

1.91

Steel Adapter, 1/8-27 Male NPT To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

2246-2-4S Male NPT To Female ORB Adapter

1/8-27

7/16-20

1.09

Steel Adapter, 1/2-14 Male NPT To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

2246-8-10S Male NPT To Female ORB Adapter

1/2-14

7/8-14

1.78

Steel Adapter, 3/8-18 Male NPT To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6404-04-06 Male NPT To Female ORB Adapter

3/8-18

7/16-20

1.13

Steel Adapter, 1/2-20 Male NPT To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6404-05-04 Male NPT To Female ORB Adapter

1/2-20

7/16-20

1.39

Steel Adapter, 3/8-18 Male NPT To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6404-06-06 Male NPT To Female ORB Adapter

3/8-18

9/16-18

1.39

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6404-08-08 Male NPT To Female ORB Adapter

1/2-14

3/4-16

1.7

Product Questions & Answers (1)

Question by: Hubert W on Jul 22, 2025, 9:28 AM
trying to hook up a line that’s 1-11-1/2 male NPT, is this the adapter that’ll get me over to a 1-5/16-12 female ORB?
Answer by: Customer Support on Jul 24, 2025, 6:47 AM
Function-wise it’s the right style for that changeover. This 2246 Series straight adapter has an external male NPTF pipe thread on one end and an internal female SAE O-ring boss straight thread on the other, sized 1-11-1/2 male NPT to 1-5/16-12 female ORB.
