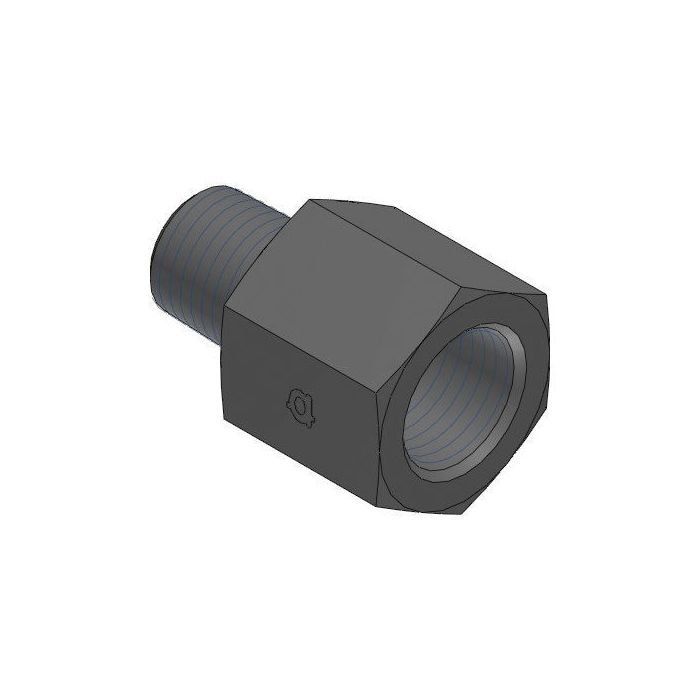

main product photo

Male Npt X Female Metric Fixed

Ask A Question

Description & Features

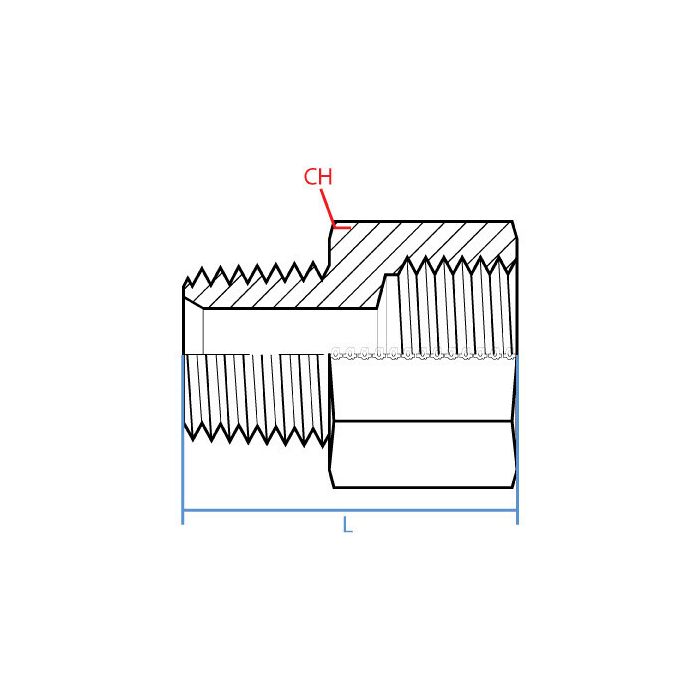

Constructed from steel in a straight configuration, this Male Npt X Female Metric Fixed adapter provides a reliable threaded connection between a 1/8" - 27 NPTF male fitting and an M10 x 1.0 female metric port. With an overall length of 32.2mm and a 14mm wrench flat, it suits applications where NPT-threaded lines must interface with metric-ported components, a common requirement in mixed-standard hydraulic assemblies.

Manufactured by Adaptall, this adapter is part of a modular fitting system designed for interchangeability across a wide range of hydraulic and fluid power configurations.

SKU: 9325-02-10X1.0

Supplier Part Number (MPN): 9325-02-10X1.0

Specifications

Brand
adapt-all
Connection Size 1
1/8 in
Connection Size 2
10 mm
Connection Type
Female Metric, MNPT
Connection Type 1
Male NPT
Connection Type 2
Female Metric
Dimension Standards
ANSI B1.20.3, DIN 7631
Dimensions
32 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
14 mm
Material
Steel
Material Construction
Carbon Steel
Series
9325 Series
Thread Size
1/8-27 x M10x1

Product Questions & Answers (1)

Question by: Debbie F on Mar 11, 2026, 12:09 PM
Got a metric-ported component on a piece of equipment and need to tie into a 1/8" NPT line. This the right adapter for that?
Answer by: Customer Support on Mar 12, 2026, 7:38 PM
That's the situation this part is built for. One end is a 1/8"-27 NPTF male thread, and the other is an M10 x 1.0 female metric port. Straight configuration, so there's no angle involved. Steel construction, 32.2mm overall length, and a 14mm wrench flat for tightening it down proper. If your line and port match those specs, you're good to go.
