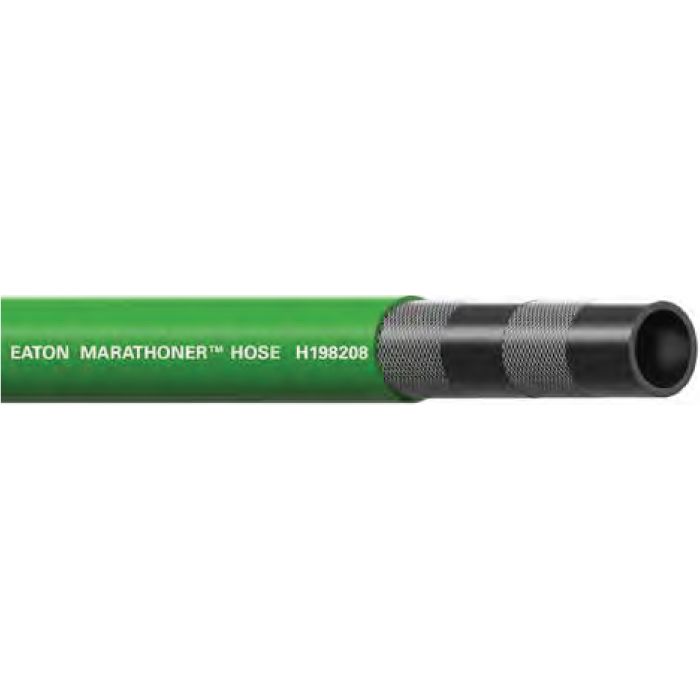

Marathoner Air & Multipurpose Rugged, Abrasion Resistant Hose, Up To 300 PSI

Description & Features

Application	Pneumatic tools on production line. Transfer of air and water. Abrasion resistant. Please review application requirements and limitations found in
Branding Type	Ink Print.
Construction	RMA Class B blended nitrile tube. 2 or 4 spiral textile reinforcement. RMA Class C pin-pricked neoprene cover, available in red, green, yellow and black.
Fitting Attachment	Pinch Clamps. Band-It Jr Preformed Clamps. Bolt Clamps
Fittings	Shank Type (Brass, Steel, Stainless Steel). Universal Type
Fittings & Fitting Attachment Suggestions	Shank or Universal type fittings attached with pinch clamps, preformed clamps or bolt clamps.
Temperature Range	-40°F to 180°F.

Model Number	Color	Hose I.D.	Hose O.D.	Number of Reinforcement Spirals	Maximum Operating Pressure	Minimum Bend Radius	Reel Qty (ft)
H198212RD-250 Marathoner Abrasion Resistant Hose	Red	0.75	0.188	4	300		--
H198204RD-600R Marathoner Abrasion Resistant Hose	Red	0.25	0.625	4	300	20	600-700
H198206RD-600R Marathoner Abrasion Resistant Hose	Red	0.375	0.75	4	300	20	600-700
H198208RD-600R Marathoner Abrasion Resistant Hose	Red	0.5	0.875	4	300	20	600-700
H198212RD-600R Marathoner Abrasion Resistant Hose	Red	0.75	0.188	4	300	20	600-700
H198216RD-400R Marathoner Abrasion Resistant Hose	Red	1	1.43	4	200	20	200-400
