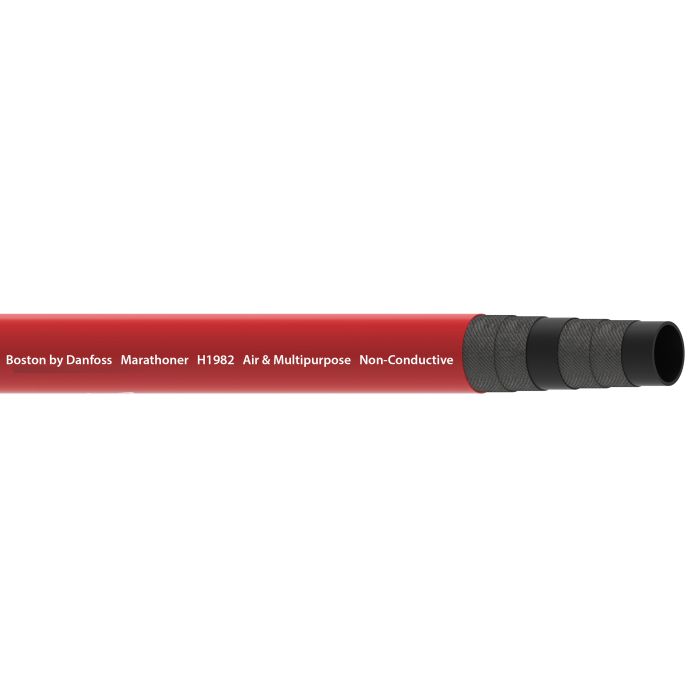

Marathoner Air & Multipurpose Rugged, Abrasion Resistant Hose, Red, 0.38 Inch ID, Up To 300.00 PSI

Description & Features

Engineered for demanding industrial environments this abrasion-resistant hose meets robust standards for durability and versatility. The RMA Class B blended nitrile tube and the RMA Class C neoprene coveravailable in multiple colors including redensure excellent performance.

Its 0.38-inch inner diameter and 0.75-inch outer diameter accommodate efficient air and water transfer and pneumatic tool applications on production lines while its ability to withstand up to 300 PSI of operating pressure offers reliability under intense conditions.

With a minimum bend radius of 20 inches and four spirals of reinforcement flexibility and strength are guaranteed. The temperature range from -40F to 180F increases its suitability for various working conditions.

For attachment options include pinch clamps Band-It Jr preformed clamps and bolt clamps while fittings like shank type and universal type are compatible.

MPN: EAR99

Supplier Part Number: H198206RD-600R

Specifications

Brand Boston® by Danfoss	Abrasion Resistance Standard	Cover Material Nitrile	Dash Size 06	For Use With U Series Hose Fittings	grp Construction RMA Class B Blended Nitrile Tube, 2 or 4-Spiral Textile Reinforcement, RMA Class C Pin-Pricked Neoprene Cover. Available in Red, Green, Yellow and Black	grp Fitting Attachment Suggestions Shank or Universal Type Fittings Attached with Pinch Clamps, Preformed Clamps or Bolt Clamps	grp Fitting Attachments Pinch Clamps, Band-It® Jr. Preformed Clamps, Bolt Clamps	grp Fittings Shank Type (Brass, Steel, Stainless Steel), Universal Type	Hose Color Red	Hose Type Non-Conductive	Inside Diameter 0.38 in	Lay Line Style Inkjet	Nominal Size 3/8 in	Package Form Reel	Reinforcement 4-Ply Spiral Fabric	Resistance Properties Abrasion	Segment Code A	Series H1982 Series	Tube Material Nitrile

Similar Products

Model Number	Color	Hose I.D.	Hose O.D.	Number of Reinforcement Spirals	Maximum Operating Pressure	Minimum Bend Radius	Reel Qty (ft)
H198212RD-250 Marathoner Abrasion Resistant Hose	Red	0.75	0.188	4	300		--
H198204RD-600R Marathoner Abrasion Resistant Hose	Red	0.25	0.625	4	300	20	600-700
H198208RD-600R Marathoner Abrasion Resistant Hose	Red	0.5	0.875	4	300	20	600-700
H198212RD-600R Marathoner Abrasion Resistant Hose	Red	0.75	0.188	4	300	20	600-700
H198216RD-400R Marathoner Abrasion Resistant Hose	Red	1	1.43	4	200	20	200-400

Product Questions & Answers (2)

Question by: Howard W on Jul 4, 2025, 6:33 PM

Can this hose handle being outside in the summer heat?

Answer by: Customer Support on Jul 6, 2025, 6:38 AM

This hose handles temperatures from -40F up to 180F, making it suitable for a range of working conditions, including outdoor use in many climates.

Question by: Clint A on May 8, 2025, 3:57 PM

hose is rated up to 300 PSI but what's the temp range on it? got some pretty cold mornings and hot afternoons out in the shop

Answer by: Customer Support on May 10, 2025, 3:42 PM

Cold mornings won't be a problem here. The operating range runs from -40F all the way up to 180F, so it handles both hard freezes and the kind of heat that builds up in a working shop through the afternoon without issue.
