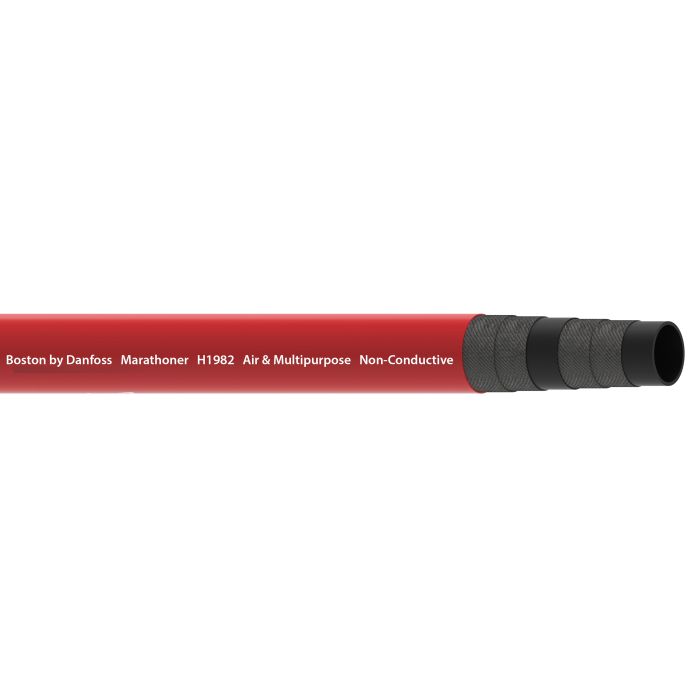

Marathoner Air & Multipurpose Rugged, Abrasion Resistant Hose, Red, 0.75 Inch ID, Up To 300.00 PSI

Ask A Question

Description & Features

The Marathoner Air & Multipurpose Rugged Abrasion Resistant Hose Red 0.75 Inch ID Up To 300.00 PSI manufactured by Danfoss is designed to meet the demanding needs of pneumatic tools and air and water transfer applications. This hose features a durable RMA Class B blended nitrile tube and a pin-pricked neoprene cover available in multiple colors including red.

Engineered for resilience the hose incorporates 2 or 4 spiral textile reinforcements to ensure a maximum operating pressure of up to 300 PSI and a minimum bend radius of 20 inches. The hose is abrasion-resistant and suitable for both air and multipurpose uses.

The Marathoner non-conductive hose is compatible with shank-type fittings made from brass steel or stainless steel and can be secured with pinch clamps preformed clamps or bolt clamps for added reliability. The recommended temperature range for this hose is from -40F to 180F making it versatile for various industrial environments.

Supplier Part Number: H198212RD-600R

Specifications

Color
Red
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
Hose I.D.
0.75
Hose O.D.
0.19
Maximum Operating Pressure
300
Minimum Bend Radius
20
Minimum Bend Radius
20
Number of Reinforcement Spirals
4
Reel Qty (ft)
600-700
Supplier Part Number
H198212RD-600R
Alternate Part Numbers
Alternate Part Number C1FU42, Alternate Part Number MI-07508051, Alternate Part Number MINO-00115X00553, Alternate Part Number MINO-00925X00268
Product Weight
0.19 lbs

Related Documents

Similar Products

Model Number Color Hose I.D. Hose O.D. Number of Reinforcement Spirals Maximum Operating Pressure Minimum Bend Radius Reel Qty (ft) Price Action
Marathoner Air & Multipurpose Rugged, Abrasion Resistant Hose, Red, 0.75 Inch ID, Up To 300.00 PSI

H198212RD-250 Marathoner Abrasion Resistant Hose

Red

0.75

0.188

4

300

--

Marathoner Air & Multipurpose Rugged, Abrasion Resistant Hose, Red, 0.25 Inch ID, Up To 300.00 PSI

H198204RD-600R Marathoner Abrasion Resistant Hose

Red

0.25

0.625

4

300

20

600-700

Marathoner Air & Multipurpose Rugged, Abrasion Resistant Hose, Red, 0.38 Inch ID, Up To 300.00 PSI

H198206RD-600R Marathoner Abrasion Resistant Hose

Red

0.375

0.75

4

300

20

600-700

Marathoner Air & Multipurpose Rugged, Abrasion Resistant Hose, Red, 0.50 Inch ID, Up To 300.00 PSI

H198208RD-600R Marathoner Abrasion Resistant Hose

Red

0.5

0.875

4

300

20

600-700

Marathoner Air & Multipurpose Rugged, Abrasion Resistant Hose, Red, 0.75 Inch ID, Up To 300.00 PSI

H198212RD-600R Marathoner Abrasion Resistant Hose

Red

0.75

0.188

4

300

20

600-700

Marathoner Air & Multipurpose Rugged, Abrasion Resistant Hose, Red, 1.00 Inch ID, Up To 200.00 PSI

H198216RD-400R Marathoner Abrasion Resistant Hose

Red

1

1.43

4

200

20

200-400

Product Questions & Answers (3)

Question by: Joyce J on Oct 14, 2025, 9:28 AM
Running pneumatic tools all shift long in a shop that gets real cold in winter and hot as blazes come July. What kind of temperature range does this hose hold up through?
Answer by: Customer Support on Oct 15, 2025, 5:48 PM
Rated from -40F up to 180F, so it holds its own through serious cold snaps and hot summer conditions without issue. That range covers most shop environments pretty comfortably, whether you're dealing with a frozen January morning or a sweltering afternoon in an uncooled building.
Question by: Norm C on Jun 21, 2025, 1:17 PM
got a 3/4 inch air line on a tool reel, is this hose rated for 300 psi like it says?
Answer by: Customer Support on Jun 23, 2025, 6:32 AM
Built for pneumatic tools and air transfer work, the hose is rated up to 300 PSI maximum operating pressure in the 0.75 inch ID size.
Question by: Roger M on Aug 26, 2025, 10:28 AM
What kind of fittings work best with this hose... I'm using it for a compressor?
Answer by: Customer Support on Aug 28, 2025, 6:38 AM
For air compressor applications, shank-type fittings made from brass, steel, or stainless steel are recommended. You can secure them with pinch clamps, preformed clamps, or bolt clamps.
