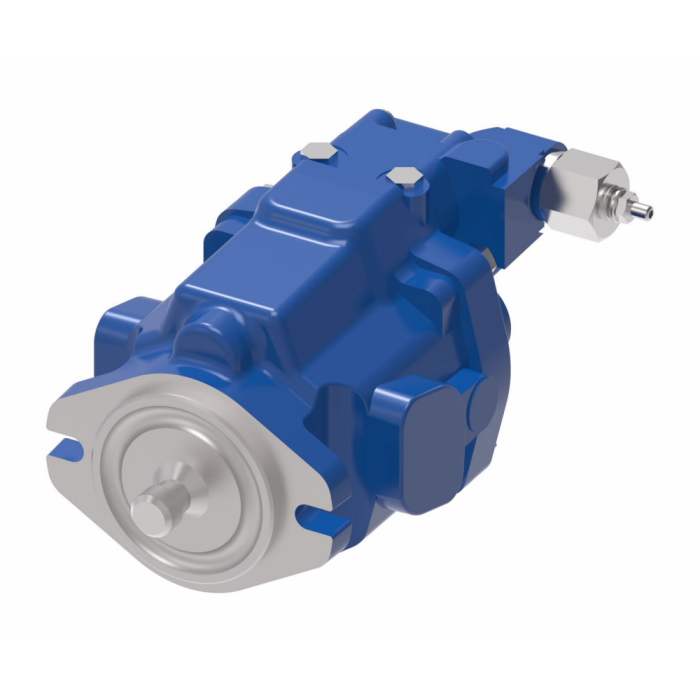

main product photo

Medium Duty Mobile Piston Pump, 4.21 cu in/rev, 2-4-Bolt SAE C Mounting Flange, 14T SAE C Splined Shaft, Pressure Compensated Load Sense Control, Compact|Lighweight, durable aluminum construction|Numerous shaft options|Tandem capability

Ask A Question

Description & Features

Designed for mobile hydraulic applications, this Eaton Vickers Medium Duty Mobile Piston Pump delivers a displacement of 4.21 cu in/rev with a rated flow of 32.8 GPM at up to 2500 RPM. The pressure compensated load sense control includes a 3000 PSI compensator setting (adjustable) and a 200 PSI load sense bias (non-adjustable), making it well suited for systems requiring precise flow and pressure management.

The pump mounts via a 2-4-Bolt SAE C flange and is fitted with a 14T SAE C splined shaft. Port configuration includes a 2-inch Code 61 flange inlet, 1-inch Code 61 flange outlet, and an SAE-10 case drain, all side-ported. Counter-clockwise rotation is standard for this configuration. The compact, lightweight aluminum housing supports tandem capability, and multiple shaft options are available within the 70523 Series. Recommended hydraulic fluid cleanliness is ISO 4406 Level 18/13 or cleaner.

SKU: 70523-LAB

Supplier Part Number (MPN): 70523-LAB

Alternate Part Numbers: C1BY64

Specifications

Application
Other
Control
Pressure Compensated Load Sense
Displacement
4.21
Displacement
4.21
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
CCW Rotation, Side Ports (2 Inch Code 61 Flange Inlet, 1 Inch Code 61 Flange Outlet), SAE-10 Case Drain, 3000 PSI Compensator Setting (Adjustable), 200 PSI Load Sense Bias (Non-adjustable)
Identification
Standard
Mount
2-4-Bolt SAE C
Mount
2-4-Bolt SAE C
Rated Flow
32.80
Rated Flow
32.8
Series
70523 Series
Shaft
14T SAE C Splined
Shaft
14T SAE C Splined
Speed Rating
2500 RPM
Speed Rating
2500 RPM
Supplier Part Number
70523-LAB
Alternate Part Numbers
Alternate Part Number C1BY64
Product Weight
72.00 lbs

Related Documents

Similar Products

Part Number Displacement Speed Rating Rated Flow Control Shaft Features Price Action

70122-RBB

1.16

2500 RPM

9

Pressure Compensated

9T SAE A Splined

Compact, lighweight durable aluminum|Numerous shaft options|Auxiliary mounting flange available

70122-RCA

1.16

2500 RPM

9

Pressure Compensated

3/4 Straight Keyed

Compact, lighweight durable aluminum|Numerous shaft options|Auxiliary mounting flange available

70122-RCW

1.16

2500 RPM

9

Pressure Compensated

9T SAE A Splined

Compact, lighweight durable aluminum|Numerous shaft options|Auxiliary mounting flange available

70523-LAB

4.21

2500 RPM

32.8

Pressure Compensated Load Sense

14T SAE C Splined

CCW Rotation, Side Ports (2 Inch Code 61 Flange Inlet, 1 Inch Code 61 Flange Outlet), SAE-10 Case Drain, 3000 PSI Compensator Setting (Adjustable), 200 PSI Load Sense Bias (Non-adjustable)

70553-RAB

4.21

2500 RPM

32.8

Pressure Compensated Load Sense

14T SAE C Splined

Compact, lighweight durable aluminum|Numerous shaft options|Auxiliary mounting flange available

Product Questions & Answers (2)

Question by: Harold G on Dec 24, 2025, 4:04 PM
pump says counter clockwise rotation -- does that mean it won't work if my system drives clockwise off the PTO?
Answer by: Customer Support on Dec 26, 2025, 6:01 AM
Counter clockwise is the correct rotation for this pump, so yes, the drive direction has to match. Running it backwards won't build pressure the right way and can cause internal damage pretty quick. Before you bolt it up, confirm which way your PTO or drive shaft turns when viewed from the shaft end of the pump. If your setup runs clockwise, you'd need a different pump spec'd for CW rotation. This one is strictly CCW.
Question by: Brent R on Apr 9, 2025, 2:58 PM
Will this pump work on my log splitter? I need a counter clockwise rotation.
Answer by: Customer Support on Apr 11, 2025, 6:19 AM
This Cessna pump has a counter-clockwise rotation, as specified. To ensure it's the right fit for your log splitter, verify that the 4.21 cu in/rev displacement, 2-4-Bolt SAE C mounting, and 14T SAE C splined shaft match your requirements. Also, this unit has side ports with a 2 Inch Code 61 Flange Inlet and a 1 Inch Code 61 Flange Outlet.
