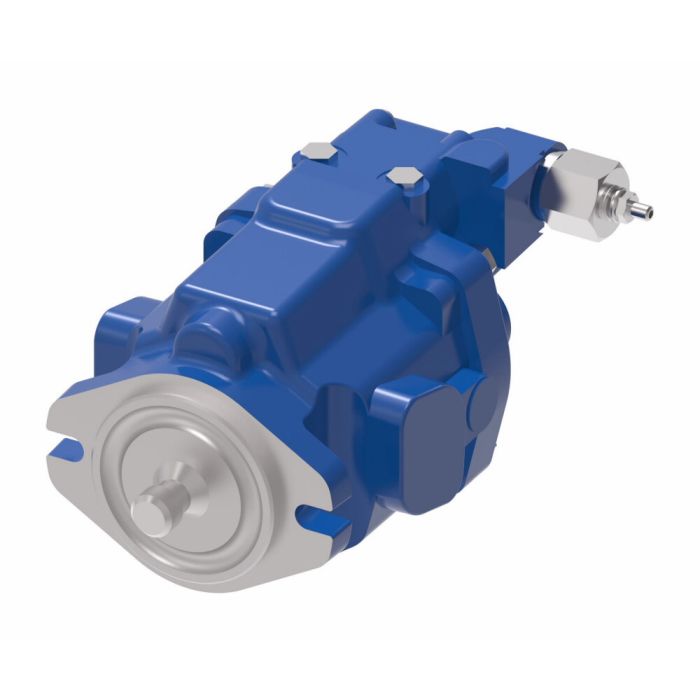

Medium Duty Mobile Piston Pump, 4.21 cu in/rev, 2-4-Bolt SAE C Mounting Flange, 14T SAE C Splined Shaft, Pressure Compensated Load Sense Control, Compact, lighweight durable aluminum|Numerous shaft options|Auxiliary mounting flange available

Designed for mobile hydraulic applications, this Eaton Vickers Medium Duty Mobile Piston Pump delivers a displacement of 4.21 cu in/rev with a rated flow of 32.8 GPM at up to 2500 RPM. The pressure compensated load sense control allows the pump to match output to system demand, making it well suited for mobile equipment where efficiency and responsive flow management are priorities.

The compact, lightweight aluminum housing keeps overall weight low without sacrificing durability, a practical advantage in space-constrained mobile installations. Mounting is via a 2-4-bolt SAE C flange with a 14-tooth SAE C splined shaft. An auxiliary mounting flange is available, and multiple shaft configurations can be specified to suit different drive arrangements.

Part of the Danfoss Power Solutions 70523 Series, this pump is recommended for use with hydraulic fluid maintained at ISO 4406 cleanliness level 18/13 or cleaner. The case must be filled with hydraulic fluid prior to startup and kept full during use, with the case drain line routed directly to the reservoir below fluid level.

SKU: 70553-RAB

Supplier Part Number (MPN): 70553-RAB

Alternate Part Numbers: C1KD62
