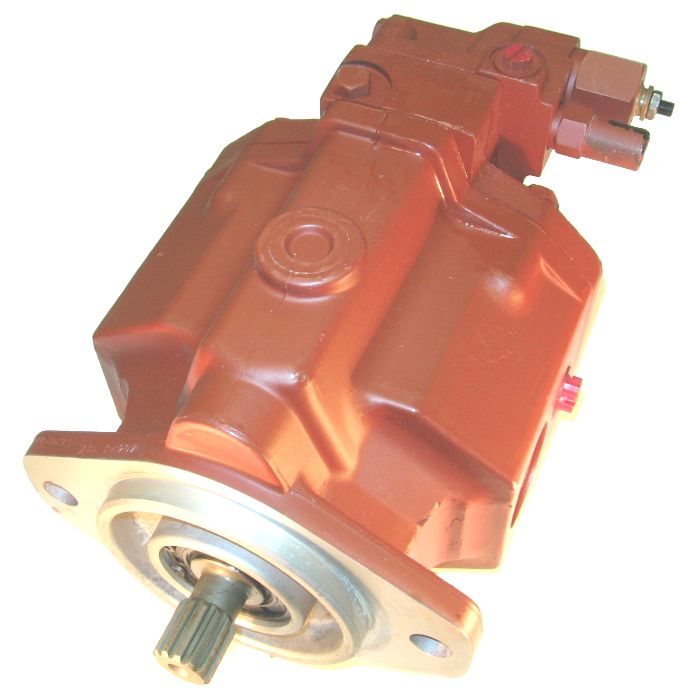

Medium Duty Mobile Piston Pumps, Up To 32 GPM @ 1800 RPM, Up To 3000 PSI, Up To 2500 RPM

Description & Features

CAUTION	Before the pump is started, fill the case through the uppermost drain port with hydraulic fluid of the type to be used. The case of the pump must remain full at all times. The case drain line must be connected directly to the reservoir and terminate below the oil level.
Features	Compact, lightweight aluminum housing.
Recommended Filtration	ISO 4406 Cleanliness Level 18/13 or cleaner.

Products

Part Number	Displacement	Speed Rating	Rated Flow	Control	Shaft	Features
70122-RBB	1.16	2500 RPM	9	Pressure Compensated	9T SAE A Splined	Compact, lighweight durable aluminum\|Numerous shaft options\|Auxiliary mounting flange available
70122-RCA	1.16	2500 RPM	9	Pressure Compensated	3/4 Straight Keyed	Compact, lighweight durable aluminum\|Numerous shaft options\|Auxiliary mounting flange available
70122-RCW	1.16	2500 RPM	9	Pressure Compensated	9T SAE A Splined	Compact, lighweight durable aluminum\|Numerous shaft options\|Auxiliary mounting flange available
70523-LAB	4.21	2500 RPM	32.8	Pressure Compensated Load Sense	14T SAE C Splined	CCW Rotation, Side Ports (2 Inch Code 61 Flange Inlet, 1 Inch Code 61 Flange Outlet), SAE-10 Case Drain, 3000 PSI Compensator Setting (Adjustable), 200 PSI Load Sense Bias (Non-adjustable)
70553-RAB	4.21	2500 RPM	32.8	Pressure Compensated Load Sense	14T SAE C Splined	Compact, lighweight durable aluminum\|Numerous shaft options\|Auxiliary mounting flange available

Product Questions & Answers (1)

Question by: Roy C on Apr 10, 2025, 7:28 AM

What all do I need to do before firing this thing up the first time? Don't wanna mess anything up right off the bat.

Answer by: Customer Support on Apr 11, 2025, 3:57 PM

Before starting the pump, be sure to fill the case with hydraulic fluid through the uppermost drain port. It's also important that the case of the pump remains full at all times, and the case drain line is connected directly to the reservoir, terminating below the oil level.
