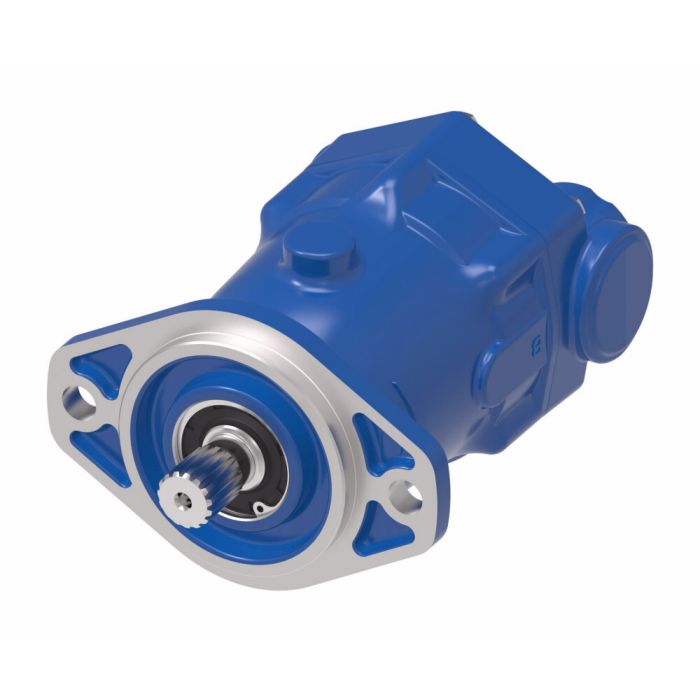

Medium Duty Piston Motor, 2.01 cu in/rev, SAE B 2-Bolt Mounting Flange, 13T SAE B Splined Shaft, Side Ports: SAE-16 Work, SAE-8 Case Drain. Advanced design features|Through drive option|Easy to configure and service

Ask A Question

Description & Features

This medium duty piston motor from Danfoss / Eaton provides a fixed displacement of 2.01 cu in/rev and is designed for demanding applications such as harvesters, sprayers, log skidders, and lift trucks. It features SAE B 2-bolt mounting and a 13T SAE B splined shaft.

The motor is built with a durable housing and offers multiple shaft and porting options. Side ports include SAE-16 for work and SAE-8 for case drain. Maximum intermittent pressure is 5400 PSI, with a pressure rating of 5000 PSI. It is designed with a rotating kit with small land.

SKU: 74315-DCU

Supplier Part Number (MPN): 74315-DCU

Alternate Part Numbers: C1HE22

Specifications

Application
Harvesters, Sprayers, Log Skidders, Fan Drives, Lawn Tractors, Lift Trucks, Scissor Lifts, Bark Removers
Displacement
2.01
Displacement
2.01
Brand
Danfoss (Net)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Advanced design features|Through drive option|Easy to configure and service
Identification
Standard
Maximum Displacement
32.90
Maximum Intermittent Pressure
5400
Mount
SAE B 2-Bolt
Mount
SAE B 2-Bolt
P Control
No Control - Fixed Displacement
Ports
Side Ports: SAE-16 Work, SAE-8 Case Drain
Ports
Side Ports: SAE-16 Work, SAE-8 Case Drain
Pressure Rating
5000
Shaft
13T SAE B Splined
Shaft
13T SAE B Splined
Special Features
Rotating Kit With Small Land
Speed Rating
3600 RPM
Speed Rating
3600 RPM
Supplier Part Number
74315-DCU
Torque Rating
183.36 newton metre
Torque Rating
183.36 newton metre
Alternate Part Numbers
Alternate Part Number C1HE22, Alternate Part Number MINO-00287X00014
Product Weight
20.00 lbs

Related Documents

Similar Products

Model Number Displacement Pressure Rating Mount Shaft Ports Features Speed Rating Maximum Intermittent Pressure Price Action
Medium Duty Piston Motor, 2.01 cu in/rev, SAE B 2-Bolt Mounting Flange, 13T SAE B Splined Shaft, Side Ports: SAE-16 Work, SAE-8 Case Drain. Advanced design features|Through drive option|Easy to configure and service

74315-DCU Medium Duty Piston Motor

2.01

5000

SAE B 2-Bolt

13T SAE B Splined

Side Ports: SAE-16 Work, SAE-8 Case Drain

Advanced design features|Through drive option|Easy to configure and service

3600 RPM

5400

Medium Duty Piston Motor, 2.48 cu in/rev, SAE B 2-Bolt Mounting Flange, 13T SAE B Splined Shaft, Side Ports: SAE-16 Work, SAE-8 Case Drain. Advanced design features|Through drive option|Easy to configure and service

74318-DFW Medium Duty Piston Motor

2.48

5000

SAE B 2-Bolt

13T SAE B Splined

Side Ports: SAE-16 Work, SAE-8 Case Drain

Advanced design features|Through drive option|Easy to configure and service

3600 RPM

5400

Medium Duty Piston Motor, 2.01 cu in/rev, SAE B 2-Bolt Mounting Flange, 13T SAE B Splined Shaft, Side Ports: SAE-16 Work, SAE-8 Case Drain. Advanced design features|Through drive option|Easy to configure and service

74315-DBF Medium Duty Piston Motor

2.01

5000

SAE B 2-Bolt

13T SAE B Splined

Side Ports: SAE-16 Work, SAE-8 Case Drain

Advanced design features|Through drive option|Easy to configure and service

3600 RPM

5400

Product Questions & Answers (2)

Question by: Gene O on Jan 18, 2026, 7:50 PM
got a motor with side work ports, are these the SAE-16 work ports and SAE-8 case drain on the side like this one?
Answer by: Customer Support on Jan 20, 2026, 12:07 PM
This motor is set up with side ports that are SAE-16 for the work ports and an SAE-8 for the case drain, all on the side.
Question by: Floyd P on Nov 14, 2025, 5:30 PM
got a quick fit check. what mounting flange and shaft is on this 74315-DCU motor?
Answer by: Customer Support on Nov 16, 2025, 6:40 AM
For fitment, it comes with an SAE B 2-bolt mounting flange and a 13T SAE B splined shaft.
