Hydraulic Power Systems & Components
Hydraulic Motors & Accessories
Piston Motors
Medium Duty Piston Motors, Up To 2.48 cu in/rev, Up To 3000 PSI, Up To 3600 RPM

Skip to the end of the images gallery

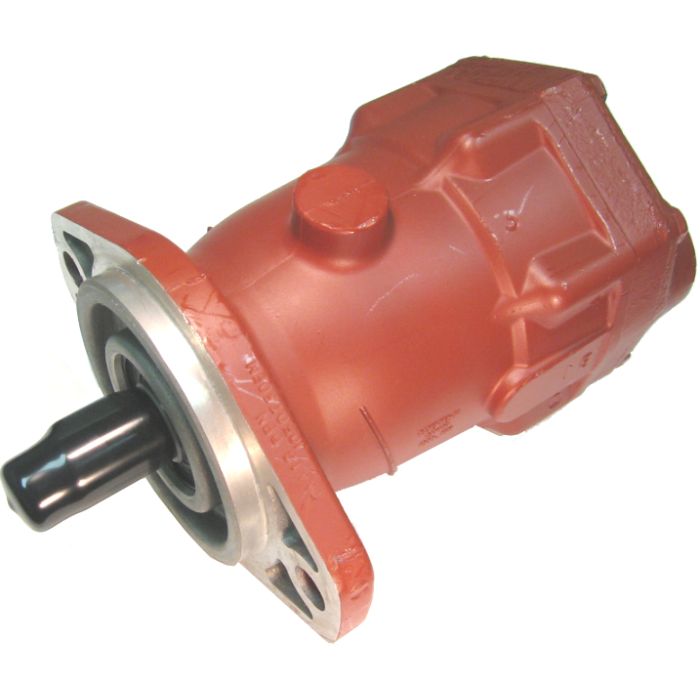

main product photo

Skip to the beginning of the images gallery

Medium Duty Piston Motors, Up To 2.48 cu in/rev, Up To 3000 PSI, Up To 3600 RPM

Description & Features

CAUTION	CAUTION - Failure to meet these requirements may result in damage to the piston motor. • Install piston motors in such a position that the case drain assures an oil level at or above unit center line. • Before the pump is started, fill the case through the uppermost drain port with hydraulic fluid of the type to be used. • The case of the motor must remain full at all times. • The case drain line must be connected directly to the reservoir and terminate below the oil level. • Oil level must be at or above the unit center line before starting the piston motor. • Provide a case drain line of adequate size to limit the case pressure to specified maximum.
Features	Compact • Lightweight Durable Housing • Numerous Shaft Options • SAE Mounting Flanges • SAE O-Ring Porting • Dual Rotation • Various Porting Options • Fixed Displacements
Inlet Temperature	225°F maximum continuous.
Pressure Limit	Main Ports: Varies with displacement, see table below. Case: 25 PSI limit for 0.60 thru 2.48 cu.in./rev models, 100 PSI limit for 5.04 cu.in./rev model.
Rated Speed	Varies with displacement, see table below.
Recommended Filtration	ISO 4406 Cleanliness Level 18/13 or cleaner.
Recommended Fluids	60-180 SSU Optimum, 60 SSU Minimum, 2000 SSU Maximum (cold start).

Products

Model Number	Displacement	Pressure Rating	Mount	Shaft	Ports	Features	Speed Rating	Maximum Intermittent Pressure	Price	Action
74315-DBF Medium Duty Piston Motor	2.01	5000	SAE B 2-Bolt	13T SAE B Splined	Side Ports: SAE-16 Work, SAE-8 Case Drain	Advanced design features\|Through drive option\|Easy to configure and service	3600 RPM	5400

Product Questions & Answers (1)

Question by: Hubert W on Jan 31, 2026, 9:33 PM

What size is the case drain port on these motors?

Answer by: Customer Support on Feb 2, 2026, 6:59 AM

These motors use a SAE-8 case drain port. You'll also find SAE-16 ports for the main work lines.
