Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.69 Inch Wiper OD, 0.19 Inch Height

Ask A Question

Description & Features

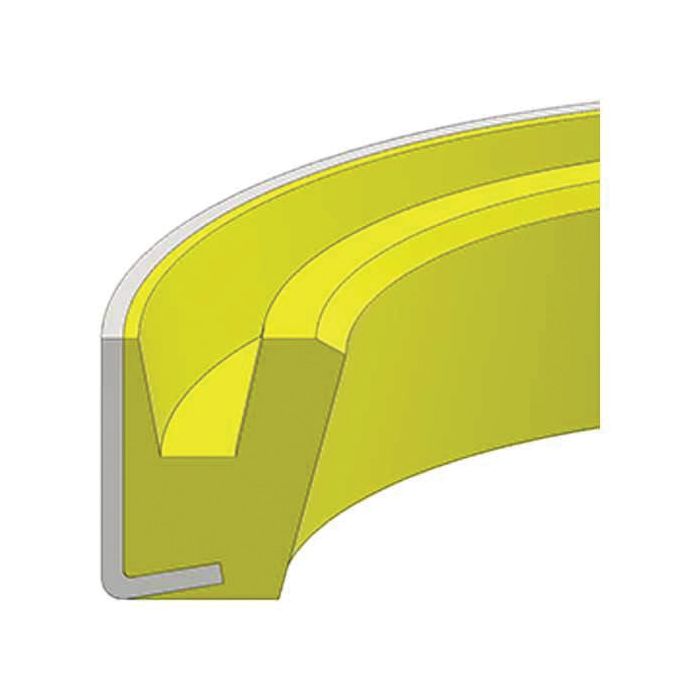

Designed to keep contaminant-laden rods clean on retraction, this rubber wiper ring from Hercules Sealing Products features a metal-clad construction that provides structural rigidity and consistent seating within the housing bore. The metal casing helps maintain dimensional stability under repetitive cycling conditions common in hydraulic cylinder applications.

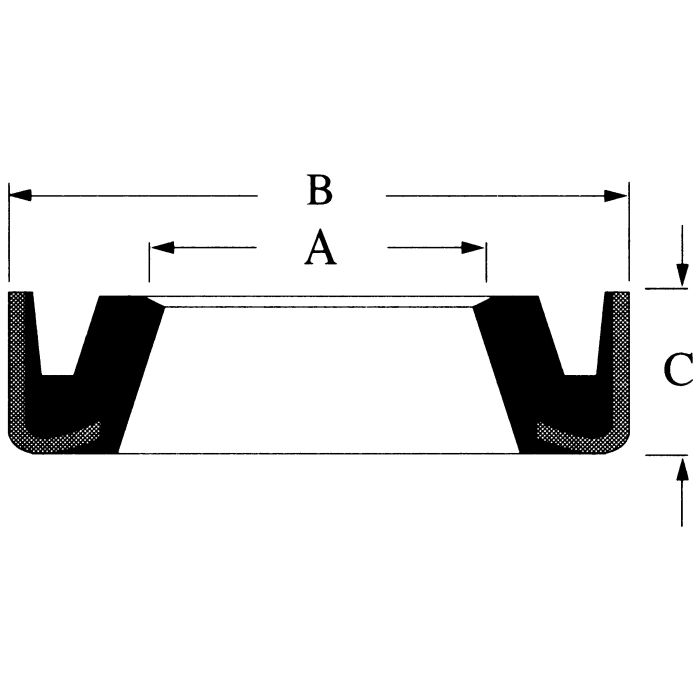

The Metal-Clad Rubber Wiper Ring fits a 1.25-inch rod diameter with a 1.688-inch OD and a height of 0.1875 inches. Rubber construction supports a working temperature range of -40°F to 240°F, making it suitable for a broad range of hydraulic and industrial cylinder environments.

Manufactured by Hercules Sealing Products and cataloged under number C1DD84, this wiper ring is a direct-fit component for standard cylinder seal gland configurations.

SKU: MCN-1253

Supplier Part Number (MPN): MCN-1253

Alternate Part Numbers: C1DD84, MI-00942930, MINO-00407X15108

Specifications

C
0.19
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Rod Diameter A
1.25
Supplier Part Number
MCN-1253
Product Weight
0.02 lbs
Alternate Part Numbers
Alternate Part Number C1DD84, Alternate Part Number MI-00942930, Alternate Part Number MINO-00407X15108

Similar Products

Model Number Rod Diameter A Wiper O.D. B C Price Action
Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.13 Inch Height

MCN-1001 Metal-Clad Rubber Wiper Ring

1

1.25

0.125

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.38 Inch Wiper OD, 0.19 Inch Height

MCN-1003 Metal-Clad Rubber Wiper Ring

1

1.375

0.1875

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.50 Inch Wiper OD, 0.19 Inch Height

MCN-1005 Metal-Clad Rubber Wiper Ring

1

1.5

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.69 Inch Wiper OD, 0.19 Inch Height

MCN-1253 Metal-Clad Rubber Wiper Ring

1.25

1.688

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.25 Inch Height

MCN-1254 Metal-Clad Rubber Wiper Ring

1.25

1.75

0.25

Metal-Clad Rubber Wiper Ring, 1.38 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.19 Inch Height

MCN-1375 Metal-Clad Rubber Wiper Ring

1.375

1.75

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.25 Inch Height

MCN-1502 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.25

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.19 Inch Height

MCN-1503 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 2.00 Inch Wiper OD, 0.25 Inch Height

MCN-1504 Metal-Clad Rubber Wiper Ring

1.5

2

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.13 Inch Wiper OD, 0.19 Inch Height

MCN-1753 Metal-Clad Rubber Wiper Ring

1.75

2.125

0.1875

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.25 Inch Wiper OD, 0.25 Inch Height

MCN-1754 Metal-Clad Rubber Wiper Ring

1.75

2.25

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.25 Inch Height

MCN-1755 Metal-Clad Rubber Wiper Ring

1.75

2.375

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.19 Inch Height

MCN-2001 Metal-Clad Rubber Wiper Ring

2

2.375

0.1875

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.63 Inch Wiper OD, 0.25 Inch Height

MCN-2002 Metal-Clad Rubber Wiper Ring

2

2.625

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.50 Inch Wiper OD, 0.25 Inch Height

MCN-2003 Metal-Clad Rubber Wiper Ring

2

2.5

0.25

Metal-Clad Rubber Wiper Ring, 2.25 Inch Rod Diameter, 2.75 Inch Wiper OD, 0.25 Inch Height

MCN-2253 Metal-Clad Rubber Wiper Ring

2.25

2.75

0.25

Metal-Clad Rubber Wiper Ring, 2.50 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.25 Inch Height

MCN-2501 Metal-Clad Rubber Wiper Ring

2.5

3

0.25

Metal-Clad Rubber Wiper Ring, 3.00 Inch Rod Diameter, 3.50 Inch Wiper OD, 0.25 Inch Height

MCN-3001 Metal-Clad Rubber Wiper Ring

3

3.5

0.25

Product Questions & Answers (1)

Question by: Glen B on Dec 15, 2025, 5:58 PM
got a 1.25 rod on my cylinder, is this wiper the right size or am i gonna fight it
Answer by: Customer Support on Dec 17, 2025, 6:22 AM
Fit comes down to the gland dimensions, and this one is made for a 1.25 inch rod with a 1.688 inch wiper OD and 0.1875 inch height. It is a metal-clad style, so it seats consistently in the housing bore when the bore matches that OD.
