Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.25 Inch Height

Ask A Question

Description & Features

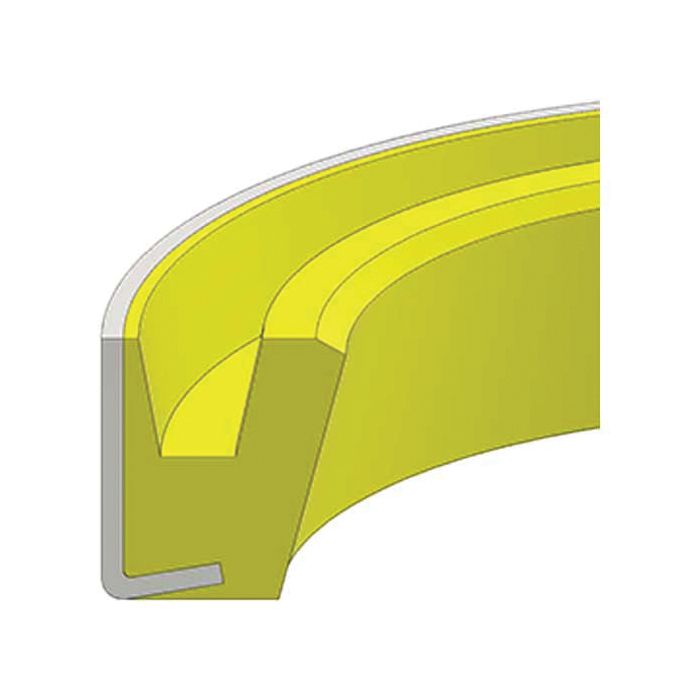

Constructed with a metal-clad rubber design, this wiper ring is built to handle the mechanical demands of hydraulic rod sealing in industrial equipment. The rubber material provides effective scraping action to keep contaminants from entering the cylinder, while the metal casing adds structural rigidity and supports consistent seating within the housing.

The Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.25 Inch Height is rated for a temperature range of -40°F to 240°F, making it suitable for hydraulic applications subject to both cold-start and elevated operating conditions. It fits a 1.25-inch rod diameter with a 1.75-inch outer diameter and a 0.25-inch installed height. This component is manufactured by Hercules Sealing Products and carries catalog number C1DD85.

SKU: MCN-1254

Supplier Part Number (MPN): MCN-1254

Alternate Part Numbers: C1DD85, MI-02227812, MINO-00407X30567

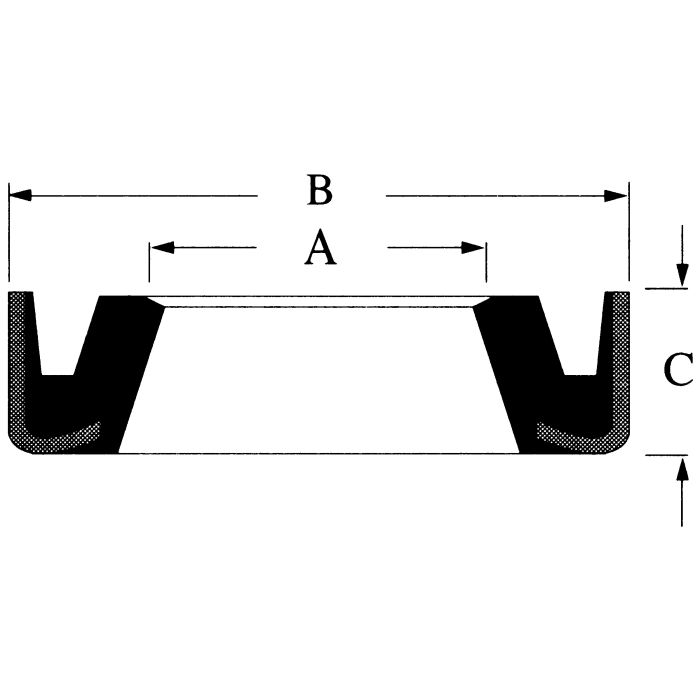

Specifications

C
0.25
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
Rod Diameter A
1.25
Supplier Part Number
MCN-1254
Product Weight
0.03 lbs
Alternate Part Numbers
Alternate Part Number C1DD85, Alternate Part Number MI-02227812, Alternate Part Number MINO-00407X30567

Similar Products

Model Number Rod Diameter A Wiper O.D. B C Price Action
Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.13 Inch Height

MCN-1001 Metal-Clad Rubber Wiper Ring

1

1.25

0.125

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.38 Inch Wiper OD, 0.19 Inch Height

MCN-1003 Metal-Clad Rubber Wiper Ring

1

1.375

0.1875

Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.50 Inch Wiper OD, 0.19 Inch Height

MCN-1005 Metal-Clad Rubber Wiper Ring

1

1.5

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.69 Inch Wiper OD, 0.19 Inch Height

MCN-1253 Metal-Clad Rubber Wiper Ring

1.25

1.688

0.1875

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.25 Inch Height

MCN-1254 Metal-Clad Rubber Wiper Ring

1.25

1.75

0.25

Metal-Clad Rubber Wiper Ring, 1.38 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.19 Inch Height

MCN-1375 Metal-Clad Rubber Wiper Ring

1.375

1.75

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.25 Inch Height

MCN-1502 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.25

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 1.88 Inch Wiper OD, 0.19 Inch Height

MCN-1503 Metal-Clad Rubber Wiper Ring

1.5

1.875

0.1875

Metal-Clad Rubber Wiper Ring, 1.50 Inch Rod Diameter, 2.00 Inch Wiper OD, 0.25 Inch Height

MCN-1504 Metal-Clad Rubber Wiper Ring

1.5

2

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.13 Inch Wiper OD, 0.19 Inch Height

MCN-1753 Metal-Clad Rubber Wiper Ring

1.75

2.125

0.1875

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.25 Inch Wiper OD, 0.25 Inch Height

MCN-1754 Metal-Clad Rubber Wiper Ring

1.75

2.25

0.25

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.25 Inch Height

MCN-1755 Metal-Clad Rubber Wiper Ring

1.75

2.375

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.19 Inch Height

MCN-2001 Metal-Clad Rubber Wiper Ring

2

2.375

0.1875

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.63 Inch Wiper OD, 0.25 Inch Height

MCN-2002 Metal-Clad Rubber Wiper Ring

2

2.625

0.25

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.50 Inch Wiper OD, 0.25 Inch Height

MCN-2003 Metal-Clad Rubber Wiper Ring

2

2.5

0.25

Metal-Clad Rubber Wiper Ring, 2.25 Inch Rod Diameter, 2.75 Inch Wiper OD, 0.25 Inch Height

MCN-2253 Metal-Clad Rubber Wiper Ring

2.25

2.75

0.25

Metal-Clad Rubber Wiper Ring, 2.50 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.25 Inch Height

MCN-2501 Metal-Clad Rubber Wiper Ring

2.5

3

0.25

Metal-Clad Rubber Wiper Ring, 3.00 Inch Rod Diameter, 3.50 Inch Wiper OD, 0.25 Inch Height

MCN-3001 Metal-Clad Rubber Wiper Ring

3

3.5

0.25

Product Questions & Answers (2)

Question by: Earl S on Feb 13, 2026, 4:42 PM
Got a cylinder with a 1.25 inch rod and need to replace the wiper, this thing gonna fit right without having to machine anything?
Answer by: Customer Support on Feb 15, 2026, 12:09 PM
For a standard 1.25-inch rod diameter with a housing bore of 1.75 inches, this wiper drops right in. The 0.25-inch height keeps it seated flush in the groove without any modification needed. The metal-clad outer casing holds its shape in the housing, so you're not fighting it during install. Just confirm your groove depth matches that 0.25-inch dimension and you're good to go.
Question by: Pete P on Dec 2, 2025, 5:40 PM
got a cylinder with a 1.25 rod, is this the right wiper size or am i missing something
Answer by: Customer Support on Dec 4, 2025, 3:29 PM
Match the rod diameter and the wiper’s outer diameter and height. This wiper ring is sized for a 1.25 inch rod, with a 1.75 inch wiper OD and a 0.25 inch installed height.
